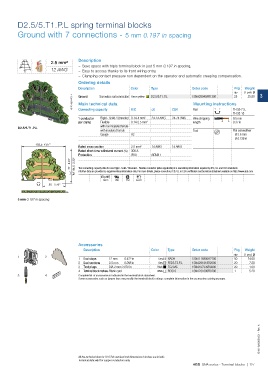

Page 129 - 1SNC160019C0203_SNA series - Terminal blocks
P. 129
D2.5/5.T1.P.L spring terminal blocks
Ground with 7 connections - 5 mm 0.197 in spacing
Description
2.5 mm²
– Save space with triple terminal block in just 5 mm 0.197 in spacing,
12 AWG – Easy to access thanks to its front wiring entry,
– Clamping contact pressure non dependent on the operator and automatic creeping compensation.
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
1SNC162011F0014 Ground Screwless rail connection Green-yellow D2.5/5.T1.P.L 1SNA290459R1300 25
25.80 3
Main technical data
Mounting instructions
IEC
CSA
TH 35-7.5,
UL
Connecting capacity
Rail
TH 35-15
1 conductor Rigid - Solid / Stranded 0.14-4 mm² 24-14 AWG 24-14 AWG Wire stripping 9.5 mm
per clamp Flexible 0.14-2.5 mm² length 0.37 in
with non insulated ferrule
D2.5/5.T1.P.L
with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
Rated cross section 2.5 mm² 14 AWG 14 AWG
Rated short-time withstand current (1s) 300 A
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CSA Gost R
5 mm 0.197 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 2.5 mm 0.098 in Grey FED5.T3.P.L 1SNA291818R2000 20 7.20
3 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
4 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
3 4 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162026S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 127
