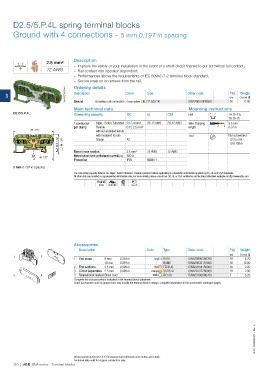

D2.5/5.P.4L spring terminal blocks
Ground with 4 connections - 5 mm 0.197 in spacing
Description
2.5 mm²
– Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact,
12 AWG – Rail contact non operator dependent,
– Performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secure snap on or remove from the rail.
Ordering details
1SNC162056F0014 Description Color Type Order code Pkg Weight
3 Ground Screwless rail connection Green-yellow D2.5/5.P.4L 1SNA290019R0500 qty (1 pce) g
50
12.00
Main technical data Mounting instructions
D2.5/5.P.4L Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
80 3.15"
with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
45.5 1.79" 38 1.50" Gauge A2 Ø 3.5 mm
Ø 0.138 in
Rated cross section 2.5 mm² 12 AWG 12 AWG
Rated short-time withstand current (1s) 300 A
40 1.57"
Protection IP20 NEMA 1
5 mm 0.197 in spacing
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.354 in
1 End stops 9 mm Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED5.4L 1SNA291041R2000 20 2.20
3 Circuit separators 2.5 mm 0.098 in Orange SCD5.4L 1SNA291372R0000 20 2.90
3 4 4 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162059S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
110 | ABB SNA series - Terminal blocks
