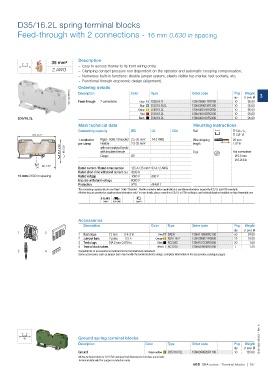

Page 109 - 1SNC160019C0203_SNA series - Terminal blocks
P. 109
D35/16.2L spring terminal blocks
Feed-through with 2 connections - 0.630 in spacing
16 mm
Description
35 mm²
– Easy to access thanks to its front wiring entry,
2 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
Ordering details
1SNC162035F0014 Description Color Type Order code Pkg (1 pce) g 3
Weight
qty
Grey
Feed-through
2 connections
95.00
D35/16.N.2L
10
1SNA399618R1300
Blue D35/16.2L 1SNA399617R0200 10 95.00
Yellow D35/16.2L 1SNA400183R2600 10 95.00
Red D35/16.2L 1SNA400182R2200 10 95.00
D35/16.2L Black D35/16.2L 1SNA400181R2400 10 95.00
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
116 4.57" TH 35-15
1 conductor Rigid - Solid / Stranded 2.5-50 mm² 14-2 AWG Wire stripping 26 mm
per clamp Flexible 2.5-35 mm² length 1.02 in
65.5 2.58" 58 2.28" with non insulated ferrule Tool Flat screwdriver
with insulated ferrule
Gauge A9 Ø 6.5 mm
Ø 0.256 in
58 2.28"
Rated current / Rated cross section 125 A / 35 mm² 93 A / 2 AWG
Rated short-time withstand current (1s) 4200 A
16 mm 0.630 in spacing Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 24.00
2 Jumper bars 2 poles 115 A Orange BJDL16-2 1SNA399621R0600 25 10.00
3 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
4 Terminal block markers White RC1010 1SNA238000R1600 1 1.30
3 4 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162016S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Green-yellow D35/16.P.2L 1SNA399620R1100 10 120.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 107
