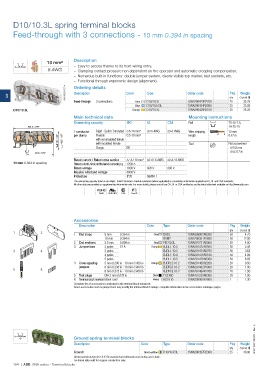

Page 106 - 1SNC160019C0203_SNA series - Terminal blocks
P. 106
D10/10.3L spring terminal blocks
Feed-through with 3 connections - 0.394 in spacing
10 mm
Description
10 mm²
– Easy to access thanks to its front wiring entry,
6 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
1SNC162054F0014 Ordering details Color Type Order code Pkg Weight
Description
3 qty (1 pce) g
Feed-through 3 connections Grey D10/10.3L 1SNA290423R2700 25 35.28
Blue D10/10.N.3L 1SNA290424R2000 25 35.28
D10/10.3L Orange D10/10.3L 1SNA290425R2100 25 35.28
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
101.5 3.99" TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-16 mm² 20-6 AWG 20-6 AWG Wire stripping 12 mm
0.47 in
50 1.96" 42.5 1.67" per clamp Flexible 0.5-10 mm² length
with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge B6 Ø 5.5 mm
Ø 0.217 in
67.5 2.65"
Rated current / Rated cross section 57 A / 10 mm² 50 A / 6 AWG 50 A / 6 AWG
10 mm 0.394 in spacing Rated short-time withstand current (1s) 1200 A
Rated voltage 1000 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED10.3L 1SNA291731R2000 20 4.00
3 Jumper bars 2 poles 57 A Orange BJDL1.10.2 1SNA291472R2500 50 2.45
3 4 3 poles BJDL1.10.3 1SNA291474R2700 50 3.65
4 poles BJDL1.10.4 1SNA291476R2100 50 4.86
5 poles BJDL1.10-5 1SNA291478R0300 50 6.05
4 Cross spacing 5 mm 0.200 in - 10 mm 0.400 in Orange BJDPL5.10-2 1SNA291480R2200 20 0.50
jumpers 6 mm 0.236 in - 10 mm 0.400 in BJDPL6.10-2 1SNA291482R1000 20 1.00
5 6 8 mm 0.315 in - 10 mm 0.400 in BJDPL8.10-2 1SNA291484R1200 20 1.50
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162013S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Green-yellow D10/10.P.3L 1SNA290427R2300 25 40.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
104 | ABB SNA series - Terminal blocks
