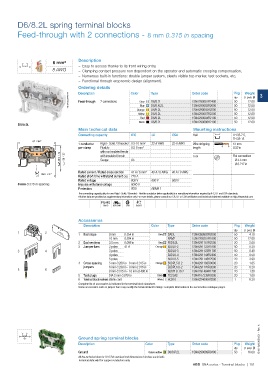

Page 103 - 1SNC160019C0203_SNA series - Terminal blocks
P. 103
D6/8.2L spring terminal blocks
Feed-through with 2 connections - 0.315 in spacing
8 mm
Description
6 mm²
– Easy to access thanks to its front wiring entry,
8 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
Ordering details Pkg
1SNC162036F0014 Description 2 connections Color Grey Type Order code qty (1 pce) g 3
Weight
12.00
50
1SNA290081R2400
D6/8.2L
Feed-through
Blue
12.00
D6/8.2L
50
1SNA290082R2500
Orange D6/8.N.2L 1SNA290083R2600 50 12.00
Yellow D6/8.2L 1SNA290087R2200 50 12.00
Red D6/8.2L 1SNA290084R2700 50 12.00
Black D6/8.2L 1SNA290086R2100 50 12.00
D6/8.2L
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
67 2.64"
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 22-8 AWG 22-8 AWG Wire stripping 13 mm
per clamp Flexible 0.5-6 mm² length 0.53 in
45.5 1.79" 38 1.50" with non insulated ferrule Tool Flat screwdriver
with insulated ferrule
Gauge
A5
Ø 5.5 mm
Ø 0.217 in
Rated current / Rated cross section 41 A / 6 mm² 40 A / 8 AWG 40 A / 8 AWG
33.3 1.32"
Rated short-time withstand current (1s) 720 A
Rated voltage 800 V 600 V 600 V
8 mm 0.315 in spacing Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED8.2L 1SNA291161R2500 20 2.00
3 Jumper bars 2 poles 41 A Orange BJDL8-2 1SNA291122R1600 50 0.20
3 4 3 poles BJDL8-3 1SNA291123R1700 50 0.40
4 poles BJDL8-4 1SNA291144R2400 50 0.50
5 poles BJDL8-5 1SNA291145R2500 20 3.90
4 Cross spacing 5 mm 0.200 in - 8 mm 0.315 in Orange BJDPL5.8-2 1SNA291160R0000 20 1.65
jumpers 6 mm 0.238 in - 8 mm 0.315 in BJDPL6.8-2 1SNA291170R0200 20 0.20
5 6 8 mm 0.315 in - 10 mm 0.400 in BJDPL8.10-2 1SNA291484R1200 20 1.50
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162009S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Green-yellow D6/8.P.2L 1SNA290089R0400 50 16.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 101
