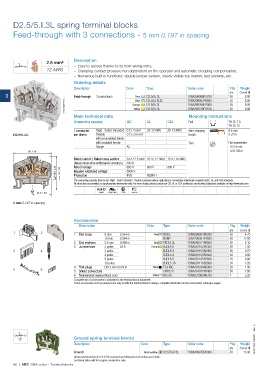

Page 98 - 1SNC160019C0203_SNA series - Terminal blocks
P. 98
D2.5/5.I.3L spring terminal blocks
Feed-through with 3 connections - 0.197 in spacing
5 mm
Description
2.5 mm²
– Easy to access thanks to its front wiring entry,
12 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc.
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
3 Feed-through 3 connections Grey D2.5/5.I.3L 1SNA399068R1700 50 8.00
1SNC162061F0014 Orange D2.5/5.I.N.3L 1SNA399067R0600 50 8.00
Blue
1SNA399260R2000
50
8.00
D2.5/5.I.3L
1SNA400219R1100
8.00
50
D2.5/5.I.3L
Yellow
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-14 AWG Wire stripping 9.5 mm
D2.5/5.I.3L per clamp Flexible 0.12-2.5 mm² length 0.37 in
with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
55 2.16"
Rated current / Rated cross section 24 A / 2.5 mm² 20 A / 12 AWG 15 A / 14 AWG
Rated short-time withstand current (1s) 300 A
56.5 2.22" 49 1.92" Rated voltage 800 V 600 V 600 V
8000 V
Impulse withstand voltage
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
27.5 1.08" RoHS USR CNR CSA Gost R
5 mm 0.197 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED5.I.3L 1SNA290311R0600 20 2.10
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 4 3 poles BJDL5-3 1SNA291103R2400 50 0.70
4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
5 6 5 Shield connectors CBD5.2L 1SNA291077R2400 50 2.00
6 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162018S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Green-yellow D2.5/5.I.P.3L 1SNA399072R0300 50 11.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
96 | ABB SNA series - Terminal blocks
