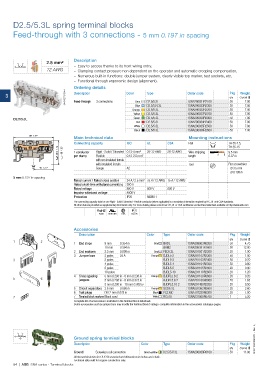

P. 96
D2.5/5.3L spring terminal blocks
Feed-through with 3 connections - 0.197 in spacing
5 mm
Description
2.5 mm²
– Easy to access thanks to its front wiring entry,
12 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
Ordering details
1SNC162078F0014 qty (1 pce) g
3 Description Color Type Order code Pkg Weight
3 connections
Grey
Feed-through
50
1SNA290033R2300
7.00
D2.5/5.N.3L
Blue D2.5/5.3L 1SNA290031R2100 50 7.00
Orange D2.5/5.3L 1SNA290032R2200 50 7.00
Yellow D2.5/5.3L 1SNA290037R2700 50 7.00
D2.5/5.3L Green D2.5/5.3L 1SNA290038R0000 50 7.00
Red D2.5/5.3L 1SNA290034R2400 50 7.00
White D2.5/5.3L 1SNA290035R2500 50 7.00
Black D2.5/5.3L 1SNA290036R2600 50 7.00
69 2.72"
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
45.5 1.79" 38 1.50" 1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping TH 35-15
9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
40 1.57" Gauge A2 Ø 3.5 mm
Ø 0.138 in
5 mm 0.197 in spacing
Rated current / Rated cross section 24 A / 2.5 mm² 15 A / 12 AWG 15 A / 12 AWG
Rated short-time withstand current (1s) 300 A
Rated voltage 800 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.354 in
1 End stops 9 mm Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED5.3L 1SNA291051R2200 20 1.90
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 4 3 poles BJDL5-3 1SNA291103R2400 50 0.70
4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in Orange BJDPL5.6-2 1SNA291150R0600 20 0.20
5 6 jumpers 5 mm 0.200 in - 8 mm 0.315 in BJDPL5.8-2 1SNA291160R0000 20 1.65
5 mm 0.200 in - 10 mm 0.400 in BJDPL5.10-2 1SNA291480R2200 20 0.50
5 Circuit separators 2.5 mm 0.098 in Orange SCD5.3L 1SNA291362R0600 20 2.60
6 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
7 7 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162002S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Screwless rail connection Green-yellow D2.5/5.P.3L 1SNA290039R0100 50 11.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
94 | ABB SNA series - Terminal blocks
