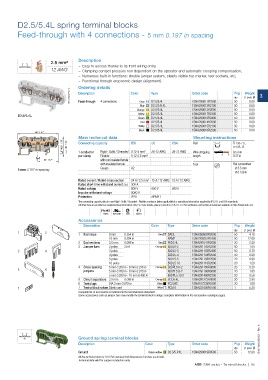

Page 97 - 1SNC160019C0203_SNA series - Terminal blocks
P. 97
D2.5/5.4L spring terminal blocks
Feed-through with 4 connections - 0.197 in spacing
5 mm
Description
2.5 mm²
– Easy to access thanks to its front wiring entry,
12 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
Ordering details
1SNC162037F0014 Description Color Type Order code Pkg (1 pce) g 3
Weight
qty
Feed-through
4 connections
Grey
1SNA290013R2700
50
D2.5/5.N.4L
8.00
Blue D2.5/5.4L 1SNA290011R2500 50 8.00
Orange D2.5/5.4L 1SNA290012R2600 50 8.00
D2.5/5.4L Yellow D2.5/5.4L 1SNA290017R2300 50 8.00
Green D2.5/5.4L 1SNA290018R0400 50 8.00
Red D2.5/5.4L 1SNA290014R2000 50 8.00
White D2.5/5.4L 1SNA290015R2100 50 8.00
Black D2.5/5.4L 1SNA290016R2200 50 8.00
80 3.15"
Main technical data Mounting instructions
45.5 1.79" 38 1.50" Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
40 1.57" with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
5 mm 0.197 in spacing
Ø 0.138 in
Rated current / Rated cross section 24 A / 2.5 mm² 15 A / 12 AWG 15 A / 12 AWG
Rated short-time withstand current (1s) 300 A
Rated voltage 800 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED5.4L 1SNA291041R2000 20 2.20
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 4 3 poles BJDL5-3 1SNA291103R2400 50 0.70
4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in Orange BJDPL5.6-2 1SNA291150R0600 20 0.20
5 6 jumpers 5 mm 0.200 in - 8 mm 0.315 in BJDPL5.8-2 1SNA291160R0000 20 1.65
5 mm 0.200 in - 10 mm 0.400 in BJDPL5.10-2 1SNA291480R2200 20 0.50
5 Circuit separators 2.5 mm 0.098 in Orange SCD5.4L 1SNA291372R0000 20 2.90
6 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
7 7 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162003S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Green-yellow D2.5/5.P.4L 1SNA290019R0500 50 12.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 95
