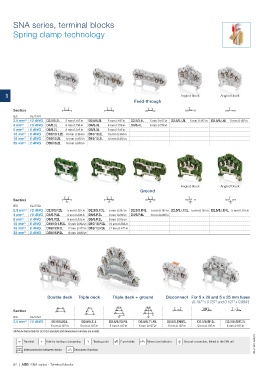

SNA series, terminal blocks
Spring clamp technology
3 Angled block Angled block
Feed-through
Section
IEC UL/CSA
2.5 mm² 12 AWG D2.5/5.2L 5 mm 0.197 in D2.5/5.3L 5 mm 0.197 in D2.5/5.4L 5 mm 0.197 in D2.5/5.I.3L 5 mm 0.197 in D2.5/5.I.4L 5 mm 0.197 in
4 mm² 10 AWG D4/6.2L 6 mm 0.236 in D4/6.3L 6 mm 0.236 in D4/6.4L 6 mm 0.236 in
6 mm² 8 AWG D6/8.2L 8 mm 0.315 in D6/8.3L 8 mm 0.315 in
10 mm² 6 AWG D10/10.1.2L 10 mm 0.394 in D10/10.3L 10 mm 0.394 in
16 mm² 6 AWG D16/12.2L 12 mm 0.472 in D16/12.3L 12 mm 0.472 in
35 mm² 2 AWG D35/16.2L 16 mm 0.630 in
Angled block Angled block
Ground
Section
IEC UL/CSA
2.5 mm² 12 AWG D2.5/5.P.2L 5 mm 0.197 in D2.5/5.P.3L 5 mm 0.197 in D2.5/5.P.4L 5 mm 0.197 in D2.5/5.I.P.3L 5 mm 0.197 in D2.5/5.I.P.4L 5 mm 0.197 in
4 mm² 10 AWG D4/6.P.2L 6 mm 0.236 in D4/6.P.3L 6 mm 0.236 in D4/6.P.4L 6 mm 0.236 in
6 mm² 8 AWG D6/8.P.2L 8 mm 0.315 in D6/8.P.3L 8 mm 0.315 in
10 mm² 6 AWG D10/10.1.P.2L 10 mm 0.394 in D10/10.P.3L 10 mm 0.394 in
16 mm² 6 AWG D16/12.P.2L 12 mm 0.472 in D16/12.P.3L 12 mm 0.472 in
35 mm² 2 AWG D35/16.P.2L 16 mm 0.630 in
Double deck Triple deck Triple deck + ground DisconnectFor 5 x 20 and 5 x 25 mm fuses
(0.197" x 0.787" and 0.197" x 0.984")
Section
IEC UL/CSA
2.5 mm² 12 AWG D2.5/5.D2.L D2.5/5.T..L D2.5/5.T3.P.L D2.5/5.T1.P.L D2.5/5.SNBT... D2.5/8.SF.2L D2.5/8.SNT.2L
5 mm 0.197 in 5 mm 0.197 in 5 mm 0.197 in 5 mm 0.197 in 5 mm 0.197 in 5 mm 0.197 in 5 mm 0.197 in
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Terminal - Hole for testing or jumpering - Testing point - Fuse holder - Blown-fuse indicator - Ground connection, linked to the DIN rail
1SNC162113S0201
Interconnection between decks - Disconnect function
