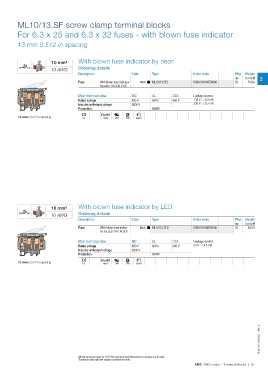

Page 89 - 1SNC160019C0203_SNA series - Terminal blocks

ML10/13.SF screw clamp terminal blocks

For 6.3 x 25 and 6.3 x 32 fuses - with blown fuse indicator

13 mm 0.512 in spacing

10 mm² With blown fuse indicator by neon
10 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g 2
Fuse With blown fuse indicator Black ML10/13.SFL 1SNA199168R0000 20 54.00
by neon 110-230 V AC

Main technical data IEC UL CSA Leakage current :
Rated voltage 800 V 600 V 600 V 110 V : < 0.5 mA
Impulse withstand voltage 8000 V 230 V : < 0.7 mA
Protection NEMA
13 mm 0.512 in spacing CE RoHS USR CSA Gost R

10 mm² With blown fuse indicator by LED
10 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Fuse With blown fuse indica- Black ML10/13.SFD 1SNA199166R2600 20 54.00
tor by LED 24 V AC/DC
Main technical data IEC UL CSA Leakage current :
Rated voltage 800 V 600 V 600 V 24 V : < 4.5 mA
Impulse withstand voltage 8000 V
Protection NEMA
13 mm 0.512 in spacing CE RoHS USR CSA Gost R

1SNC161107S0201 - Rev. A

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 87
