P. 88

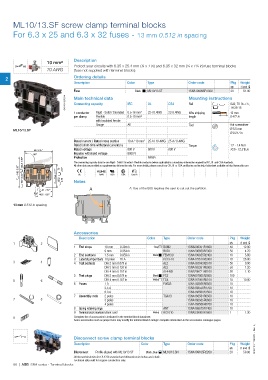

ML10/13.SF screw clamp terminal blocks
For 6.3 x 25 and 6.3 x 32 fuses - 0.512 in spacing
13 mm
Description
10 mm²
Protect your circuits with 6.35 x 25.4 mm ( ¼ x 1 in ) and 6.35 x 32 mm ( ¼ x 1¼ in ) fuse terminal blocks
10 AWG (fuse not supplied with terminal blocks).
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Fuse Black ML10/13.SF 1SNA199095R1300 20 51.00
1SNC161136F0014 Main technical data IEC UL CSA Mounting instructions
Connecting capacity
G32, TH 35-7.5,
Rail
1 conductor Rigid - Solid / Stranded 0.5-16 mm² 22-10 AWG 22-8 AWG Wire stripping TH 35-15
12 mm
per clamp Flexible 0.5-10 mm² length 0.472 in
with insulated ferrule
Gauge A6 Tool Flat screwdriver
ML10/13.SF Ø 5.5 mm
Ø 0.217 in
Rated current / Rated cross section 10 A / 10 mm² 25 A / 10 AWG 25 A / 8 AWG
Rated short-time withstand current (1s) Torque 1.2 - 1.4 N.m
85 3.35" Rated voltage 800 V 600 V 600 V 10.6 - 12.3 lb.in
90° Impulse withstand voltage 8000 V NEMA
Protection
144.5 5.69" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
142 5.50" 70.5 2.77" 73 2.87"
CE
137 5.39" 65.5 2.58" Notes RoHS USR CSA Gost R
A: Use of the BJS requires the user to cut out the partition.
41 1.61" A
46.5 1.83"
13 mm 0.512 in spacing
Accessories
Description Color Type Order code Pkg Weight
1 2 qty (1 pce) g
1 End stops 10 mm 0.394 in Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA206659R2300 50 4.70
2 End sections 1.5 mm 0.059 in Black FEM13U 1SNA199635R2400 10 5.80
3 Lateral jumper bars 10 poles 70 A PC13-10 1SNA173510R2000 10 26.00
3 4 4 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
DIA 4 mm 0.157 in AL4-M3 1SNA206721R0100 50 1.10
5 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
5 6 DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
6 Fuses 1 A FU633 1SNA168556R0500 10
2.5 A 1SNA168558R1700 10
6.3 A 1SNA168560R1500 10
7 Assembly rods 2 poles TGA13 1SNA168564R0500 10
7 8 3 poles 1SNA168565R0600 10
4 poles 1SNA168566R0700 10
8 Spring retaining rings ANT 1SNA168675R1400 10
9 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
9 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161113S0201 - Rev. A
Disconnect screw clamp terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect Profile aligned with ML10/13 SF Black, blue ML10/13.SN 1SNA199105R2200 20 59.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
86 | ABB SNA series - Terminal blocks
