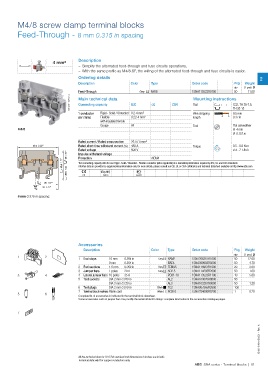

Page 83 - 1SNC160019C0203_SNA series - Terminal blocks
P. 83
M4/8 screw clamp terminal blocks
Feed-Through - 8 mm 0.315 in spacing
Description
4 mm²
– Simplify the alternated feed-through and fuse circuits operations,
– With the same profile as M4/8.SF, the wiring of the alternated feed-through and fuse circuits is easier.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-Through Grey M4/8 1SNA115523R0700 50 11.00
1SNC161155F0014 Main technical data IEC UL CSA Mounting instructions
Connecting capacity
G32, TH 35-7.5,
Rail
9.5 mm
1 conductor Rigid - Solid / Stranded 0.2-4 mm² Wire stripping TH 35-15
per clamp Flexible 0.22-4 mm² length 0.37 in
with insulated ferrule
Gauge A4 Tool Flat screwdriver
M4/8 Ø 4 mm
Ø 0.157 in
Rated current / Rated cross section 26 A / 4 mm²
56.5 2.22" Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.8 N.m
Rated voltage 500 V 4.4 - 7.1 lb.in
46 1.81" Impulse withstand voltage NEMA
Protection
43.5 1.71" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. for more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
38.5 1.52" CE RoHS Gost R
26 1.02"
31 1.22"
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 1.5 mm 0.059 in Grey FEM8S 1SNA116951R1500 20 2.60
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
5 Test sockets DIA 2 mm 0.079 in AL2 1SNA163070R0000 50
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
5 6
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
7
1SNC161077S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 81
Feed-Through - 8 mm 0.315 in spacing
Description
4 mm²
– Simplify the alternated feed-through and fuse circuits operations,
– With the same profile as M4/8.SF, the wiring of the alternated feed-through and fuse circuits is easier.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-Through Grey M4/8 1SNA115523R0700 50 11.00
1SNC161155F0014 Main technical data IEC UL CSA Mounting instructions
Connecting capacity
G32, TH 35-7.5,
Rail
9.5 mm
1 conductor Rigid - Solid / Stranded 0.2-4 mm² Wire stripping TH 35-15
per clamp Flexible 0.22-4 mm² length 0.37 in
with insulated ferrule
Gauge A4 Tool Flat screwdriver
M4/8 Ø 4 mm
Ø 0.157 in
Rated current / Rated cross section 26 A / 4 mm²
56.5 2.22" Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.8 N.m
Rated voltage 500 V 4.4 - 7.1 lb.in
46 1.81" Impulse withstand voltage NEMA
Protection
43.5 1.71" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. for more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
38.5 1.52" CE RoHS Gost R
26 1.02"
31 1.22"
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 1.5 mm 0.059 in Grey FEM8S 1SNA116951R1500 20 2.60
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
5 Test sockets DIA 2 mm 0.079 in AL2 1SNA163070R0000 50
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
5 6
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
7
1SNC161077S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 81
