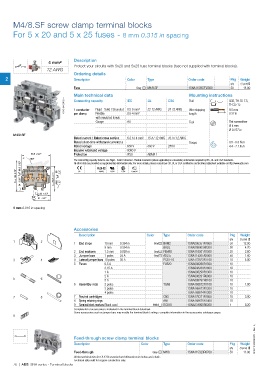

M4/8.SF screw clamp terminal blocks
For 5 x 20 and 5 x 25 fuses - 8 mm 0.315 in spacing
Description
4 mm²
Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks).
12 AWG
Ordering details
2 Description Color Type Order code Pkg Weight
qty (1 pce) g
Fuse Grey M4/8.SF 1SNA115657R2500 50 14.00
Main technical data Mounting instructions
1SNC161193F0014 Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
22-12 AWG
Rigid - Solid / Stranded 0.5-6 mm²
24-12 AWG
1 conductor
0.37 in
per clamp Flexible 0.5-4 mm² Wire stripping 9.5 mm
length
with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
M4/8.SF
Rated current / Rated cross section 6.3 A / 4 mm² 15 A / 12 AWG 10 A / 12 AWG
Rated short-time withstand current (1s) Torque 0.5 - 0.8 N.m
Rated voltage 630 V 600 V 250 V 4.4 - 7.1 lb.in
Impulse withstand voltage 8000 V
56.5 2.22" Protection IP20 NEMA 1
180° The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
98.5 3.89" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
96 3.78" 53.5 2.10" 56 2.20" CE RoHS USR CSA Gost R
91 3.58" 48.5 1.90"
26 1.03"
31 1.22"
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 1.5 mm 0.059 in Grey FEM8S 1SNA116951R1500 20 2.60
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
5 Fuses 0.5 A FU520 1SNA008288R1500 10
3.15 A 1SNA008289R1600 10
1 A 1SNA008290R1300 10
2 A 1SNA008291R0000 10
5 6
5 A 1SNA008292R0100 10
6 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
7 8 7 Neutral cartridges CN5 1SNA179371R1600 10 3.90
8 Spring retaining rings ANT 1SNA168675R1400 10
9 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
9
1SNC161053S0201 - Rev. A
Feed-through screw clamp terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Grey M4/8 1SNA115523R0700 50 11.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
