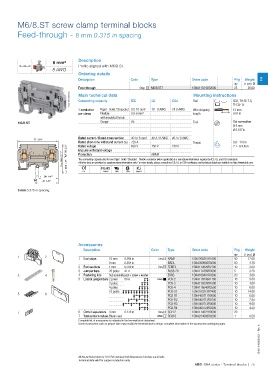

Page 77 - 1SNC160019C0203_SNA series - Terminal blocks
P. 77
M6/8.ST screw clamp terminal blocks
Feed-through - 8 mm 0.315 in spacing
Description
6 mm²
Profile aligned with M6/8 ST.
8 AWG
Ordering details
Description Color Type Order code Pkg Weight 2
qty (1 pce) g
Feed-through Grey M6/8.ST7 1SNA115243R2600 25 20.00
1SNC161150F0014 Main technical data IEC UL CSA Mounting instructions
G32, TH 35-7.5,
Connecting capacity
Rail
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 18 - 8 AWG 18-8 AWG Wire stripping TH 35-15
13 mm
per clamp Flexible 0.5-6 mm² length 0.51 in
with insulated ferrule
M6/8.ST Gauge A5 Tool Flat screwdriver
Ø 5 mm
Ø 0.197 in
Rated current / Rated cross section 40 A / 6 mm² 40 A / 8 AWG 40 A / 8 AWG
77 3.03"
Rated short-time withstand current (1s) 720 A Torque 0.8 - 1 N.m
56 2.21" Rated voltage 630 V 150 V 150 V 7.1 - 8.9 lb.in
Impulse withstand voltage
53.5 2.11" Protection NEMA
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
48.5 1.91" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CSA Gost R
36 1.42"
41 1.61"
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 1 mm 0.039 in Grey FEMT2 1SNA113629R2700 10 2.00
3 Jumper bars 20 poles 41 A BJS8-20 1SNA174789R0500 5 3.20
3 4 4 Fastening kits Sub assembly post + screw + washer EV8S 1SNA168401R0300 20 3.00
5 Lateral jumper bars2 poles 50 A Black PC8-2 1SNA116538R1700 10 3.00
3 poles PC8-3 1SNA116539R1000 10 4.00
4 poles PC8-4 1SNA116540R2500 10 6.00
10 poles PC8-10 1SNA163313R2400 10 14.00
5 6
PC8-R1 1SNA400711R0600 10 6.60
PC8-R2 1SNA400712R0700 10 7.84
PC8-R3 1SNA400713R0000 10 9.00
PC8-R4 1SNA400724R0300 10 4.50
7 6 Circuit separators 3 mm 0.118 in Grey SCFT2 1SNA114522R0500 20
7 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161069S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 75
