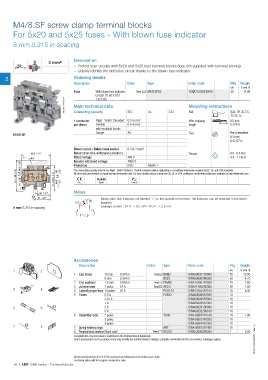

Page 80 - 1SNC160019C0203_SNA series - Terminal blocks
P. 80
M4/8.SF screw clamp terminal blocks
For 5x20 and 5x25 fuses - With blown fuse indicator
8 mm 0.315 in spacing
Description
4 mm²
– Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks),
– Quickly identify the defective circuit thanks to the blown fuse indicator.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Fuse With blown fuse indicator Grey M4/8.SFD3 1SNA115935R0400 50 14.00
by LED 24-60 V DC/
1SNC161161F0014 Main technical data Mounting instructions
110 V AC
UL
IEC
Connecting capacity
CSA
G32, TH 35-7.5,
Rail
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-6 mm² Wire stripping 9.5 mm
per clamp Flexible 0.5-4 mm² length 0.374 in
with insulated ferrule
Gauge A4 Tool Flat screwdriver
M4/8.SF
Ø 4 mm
Ø 0.157 in
Rated current / Rated cross section 6.3 A / 4 mm²
56.5 2.22" Rated short-time withstand current (1s) Torque 0.5 - 0.8 N.m
180° Rated voltage 400 V 4.4 - 7.1 lb.in
Impulse withstand voltage
4000 V
98.5 3.89" Protection IP20 NEMA 1
96 3.78" 53.5 2.10" 56 2.20" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
91 3.58" 48.5 1.90" CE RoHS Gost R
26 1.03" Notes
31 1.22" Blocks with LED indicator are labeled "+" on the outside of the lever. The indicator can be reversed in the field if
required.
8 mm 0.315 in spacing Leakage current : 24 V : < 0.5 mA / 110 V : < 2.2 mA
Accessories
Description Color Type Order code Pkg Weight
1 2 qty (1 pce) g
1 End stops 10 mm 0.394 in Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 1.5 mm 0.059 in Grey FEM8S 1SNA116951R1500 20 2.60
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
5 Fuses 0.5 A FU520 1SNA008288R1500 10
3.15 A 1SNA008289R1600 10
1 A 1SNA008290R1300 10
5 6 2 A 1SNA008291R0000 10
5 A 1SNA008292R0100 10
6 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
7 8 7 Spring retaining rings ANT 1SNA168675R1400 10
8 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages. 1SNC161075S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
78 | ABB SNA series - Terminal blocks
