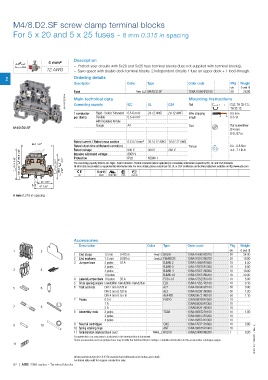

P. 84
M4/8.D2.SF screw clamp terminal blocks
For 5 x 20 and 5 x 25 fuses - 8 mm 0.315 in spacing
Description
4 mm²
– Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks),
12 AWG – Save space with double deck terminal blocks: 2 independent circuits 1 fuse on upper deck + 1 feed-through.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Fuse Grey M4/8.D2.SF 1SNA115604R2100 50 26.00
1SNC161082F0014 Main technical data IEC UL CSA Mounting instructions
G32, TH 35-7.5,
Rail
Connecting capacity
1 conductor Rigid - Solid / Stranded 0.5-6 mm² 24-12 AWG 24-12 AWG Wire stripping TH 35-15
9.5 mm
per clamp Flexible 0.5-4 mm² length 0.37 in
with insulated ferrule
Gauge A4 Tool Flat screwdriver
M4/8.D2.SF
Ø 4 mm
Ø 0.157 in
Rated current / Rated cross section 6.3 A / 4 mm² 20 A / 12 AWG 10 A / 12 AWG
85.7 3.37"
Rated short-time withstand current (1s) 630 V 300 V 250 V Torque 0.5 - 0.8 N.m
Rated voltage
4.4 - 7.1 lb.in
116.5 4.59" Impulse withstand voltage 8000 V NEMA 1
114 4.49" 71.5 2.81" 74 2.91" Protection IP20
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
109 4.29" 66.5 2.62" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
USR CNR
CSA
CE
RoHS
Gost R
42 1.65"
47 1.85"
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
1 2 qty (1 pce) g
1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 24.00
2 End sections 1.5 mm 0.059 in Grey FEM8D2S 1SNA116913R0700 20 10.00
3 Jumper bars 2 poles 41 A BJMI8-2 1SNA176669R1600 10 4.50
3 poles BJMI8-3 1SNA176670R1300 10 6.00
3 4 4 poles BJMI8-4 1SNA176671R0000 10 10.00
10 poles BJMI8-10 1SNA176673R0200 10 20.00
4 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
5 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
5 6 6 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
DIA 4 mm 0.157 in AL4-M3 1SNA206721R0100 50 1.10
7 Fuses 0.5 A FU520 1SNA008288R1500 10
1 A 1SNA008290R1300 10
7 8 2 A 1SNA008291R0000 10
8 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
9 10 9 Neutral cartridges CN5 1SNA179371R1600 10 3.90
10 Spring retaining rings ANT 1SNA168675R1400 10
11 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages. 1SNC161112S0201 - Rev. A
11
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
82 | ABB SNA series - Terminal blocks
