Page 86 - 1SNC160019C0203_SNA series - Terminal blocks
P. 86

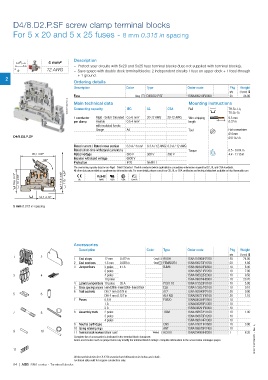

D4/8.D2.P.SF screw clamp terminal blocks
For 5 x 20 and 5 x 25 fuses - 8 mm 0.315 in spacing
Description
4 mm²
– Protect your circuits with 5x20 and 5x25 fuse terminal blocks (fuse not supplied with terminal blocks),
12 AWG – Save space with double deck terminal blocks: 2 independent circuits 1 fuse on upper deck + 1 feed-through
+ 1 ground.
2
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Fuse Grey D4/8.D2.P.SF 1SNA400270R2000 25 35.00
1SNC161034F0014 Main technical data IEC UL CSA Mounting instructions
TH 35-7.5,
Connecting capacity
Rail
9.5 mm
1 conductor Rigid - Solid / Stranded 0.5-6 mm² 20-12 AWG 20-12 AWG Wire stripping TH 35-15
per clamp Flexible 0.5-4 mm² length 0.37 in
with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
D4/8.D2.P.SF Ø 0.157 in
Rated current / Rated cross section 6.3 A / 4 mm² 6.3 A / 12 AWG 6.3 A / 12 AWG
Rated short-time withstand current (1s) Torque 0.5 - 0.8 N.m
Rated voltage 300 V 300 V 300 V 4.4 - 7.1 lb.in
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CSA Gost R
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 1.5 mm 0.059 in Grey FEM8D2S1 1SNA400273R1700 20 4.60
3 Jumper bars 2 poles 41 A BJM8 1SNA168520R0500 10 5.00
3 poles 1SNA168521R2200 10 7.00
3 4 4 poles 1SNA168522R2300 10 9.50
10 poles 1SNA168974R0000 10 23.70
4 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
5 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
6 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
5 6
DIA 4 mm 0.157 in AL4-M3 1SNA206721R0100 50 1.10
7 Fuses 0.5 A FU520 1SNA008288R1500 10
1 A 1SNA008290R1300 10
2 A 1SNA008291R0000 10
7 8 8 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
9 Neutral cartridges CN5 1SNA179371R1600 10 3.90
10 Spring retaining rings ANT 1SNA168675R1400 10
9 10 11 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet. 1SNC161078S0201 - Rev. A
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
11
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
84 | ABB SNA series - Terminal blocks
