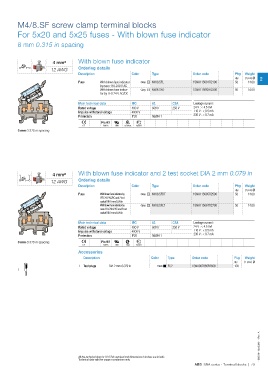

Page 81 - 1SNC160019C0203_SNA series - Terminal blocks

M4/8.SF screw clamp terminal blocks

For 5x20 and 5x25 fuses - With blown fuse indicator

8 mm 0.315 in spacing

4 mm² With blown fuse indicator
12 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g 2
Fuse With blown fuse indicator Grey M4/8.SFL 1SNA115661R2100 50 14.00
by neon 110-230 V AC
With blown fuse indica- Grey M4/8.SFD 1SNA115663R2300 50 14.00
tor by LED 24 V AC/DC
Main technical data IEC UL CSA Leakage current :
Rated voltage 400 V 600 V 250 V 24 V : < 4.5 mA
Impulse withstand voltage 4000 V 110 V : < 0.5 mA
Protection IP20 NEMA 1 230 V : < 0.7 mA
CUS
CE RoHS USR cCSAus Gost R
8 mm 0.315 in spacing

4 mm² With blown fuse indicator and 2 test socket DIA 2 mm 0.079 in
12 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Fuse With blown fuse indicator by Grey M4/8.SFDT 1SNA115665R2500 50 14.00
LED 24 V AC/DC and 2 test
socket DIA 2 mm 0.079 in
With blown fuse indicator by Grey M4/8.SFLT 1SNA115667R2700 50 14.00
neon 110-230 V AC and 2 test
socket DIA 2 mm 0.079 in
Main technical data IEC UL CSA Leakage current :
Rated voltage 400 V 600 V 250 V 24 V : < 4.5 mA
Impulse withstand voltage 4000 V 110 V : < 0.5 mA
Protection IP20 NEMA 1 230 V : < 0.7 mA
8 mm 0.315 in spacing
CE RoHS USR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
1

1SNC161105S0201 - Rev. A

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 79
