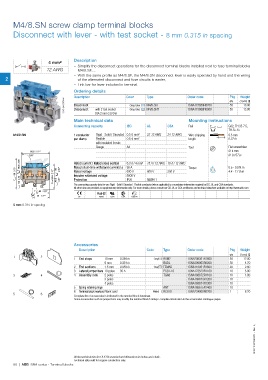

M4/8.SN screw clamp terminal blocks
Disconnect with lever - with test socket - 0.315 in spacing
8 mm
Description
4 mm²
– Simplify the disconnect operations for the disconnect terminal blocks installed next to fuse terminal blocks
12 AWG M4/8.SF...,
– With the same profile as M4/8.SF, the M4/8.SN disconnect lever is easily operated by hand and the wiring
2 of the alternated disconnect and fuse circuits is easier,
– Link bar for lever included in terminal.
Ordering details Color Type Order code Pkg Weight
Description
1SNC161160F0014 Disconnect with 2 test socket Grey, blue M4/8.SN 1SNA115659R0700 qty (1 pce) g
13.00
50
Disconnect
M4/8.SNT
13.00
1SNA115668R0000
50
Grey, blue
DIA 2 mm 0.079 in
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
M4/8.SN 1 conductor Rigid - Solid / Stranded 0.5-6 mm² 22-12 AWG 24-12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.5-4 mm² length 0.37 in
with insulated ferrule
Gauge A4 Tool Flat screwdriver
56.5 2.22" Ø 4 mm
180° Ø 0.157 in
98.5 3.89" Rated current / Rated cross section 6.3 A / 4 mm² 15 A / 12 AWG 10 A / 12 AWG
96 3.78" 53.5 2.10" 56 2.20" Rated short-time withstand current (1s) 90 A 600 V 250 V Torque 0.5 - 0.8 N.m
4.4 - 7.1 lb.in
630 V
Rated voltage
91 3.58" 48.5 1.90" Impulse withstand voltage 8000 V NEMA 1
Protection
IP20
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
26 1.03"
31 1.22" CE RoHS USR CSA Gost R
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 1.5 mm 0.059 in Grey FEM8S 1SNA116951R1500 20 2.60
3 Lateral jumper bars 10 poles 35 A PC81-10 1SNA173523R1100 10 5.00
3 4 4 Assembly rods 2 poles TGA8 1SNA168672R1100 10 1.00
3 poles 1SNA168673R1200 10
4 poles 1SNA168674R1300 10
5 Spring retaining rings ANT 1SNA168675R1400 10
6 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
5 6
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161076S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
