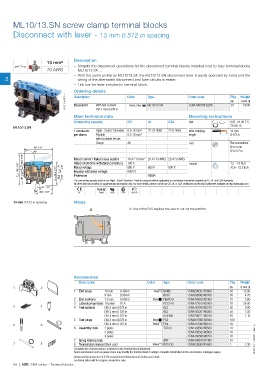

Page 90 - 1SNC160019C0203_SNA series - Terminal blocks
P. 90
ML10/13.SN screw clamp terminal blocks
Disconnect with lever - 13 mm 0.512 in spacing
Description
10 mm²
– Simplify the disconnect operations for the disconnect terminal blocks installed next to fuse terminal blocks
10 AWG ML10/13.SF...,
– With the same profile as ML10/13.SF, the ML10/13.SN disconnect lever is easily operated by hand and the
2 wiring of the alternated disconnect and fuse circuits is easier,
– Link bar for lever included in terminal block.
Ordering details
1SNC161243F0014 Description With test sockets Color Type Order code Pkg Weight
(1 pce) g
qty
20
59.00
Disconnect
ML10/13.SN
1SNA199105R2200
Black, blue
DIA 2 mm 0.079 in
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
ML10/13.SN
1 conductor Rigid - Solid / Stranded 0.5-16 mm² 22-10 AWG 22-8 AWG Wire stripping 12 mm
per clamp Flexible 0.5-10 mm² length 0.472 in
with insulated ferrule
Gauge A6 Tool Flat screwdriver
85 3.35" Ø 5.5 mm
90° Ø 0.217 in
144.5 5.69" Rated current / Rated cross section 16 A / 10 mm² 25 A / 10 AWG 25 A / 8 AWG
142 5.50" 70.5 2.77" 73 2.87" Rated short-time withstand current (1s) 180 A 600 V 600 V Torque 1.2 - 1.4 N.m
800 V
Rated voltage
10.6 - 12.3 lb.in
137 5.39" 65.5 2.58" Impulse withstand voltage 8000 V NEMA
Protection
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
41 1.61"
46.5 1.83" CE RoHS USR CSA Gost R
13 mm 0.512 in spacing Notes
A: Use of the BJS requires the user to cut out the partition.
A
Accessories
Description Color Type Order code Pkg Weight
1 2 qty (1 pce) g
1 End stops 10 mm 0.394 in Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 1.5 mm 0.059 in Black FEM13U 1SNA199635R2400 10 5.80
3 Lateral jumper bars 10 poles 70 A PC13-10 1SNA173510R2000 10 26.00
3 4 4 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
DIA 4 mm 0.157 in AL4-M3 1SNA206721R0100 50 1.10
5 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
5 6 DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10
6 Assembly rods 2 poles TGA13 1SNA168564R0500 10
3 poles 1SNA168565R0600 10
4 poles 1SNA168566R0700 10 1SNC161114S0201 - Rev. A
7 Spring retaining rings ANT 1SNA168675R1400 10
7 8 8 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
88 | ABB SNA series - Terminal blocks
