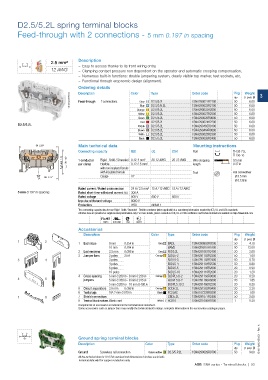

Page 95 - 1SNC160019C0203_SNA series - Terminal blocks
P. 95
D2.5/5.2L spring terminal blocks
Feed-through with 2 connections - 0.197 in spacing
5 mm
Description
2.5 mm²
– Easy to access thanks to its front wiring entry,
12 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumpering system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
Ordering details Pkg
1SNC162036F0014 Description 2 connections Color Grey Type Order code qty (1 pce) g 3
Weight
Feed-through
6.00
50
D2.5/5.2L
1SNA290021R2700
Blue
1SNA290022R2000
50
D2.5/5.2L
6.00
Orange D2.5/5.N.2L 1SNA290023R2100 50 6.00
Yellow D2.5/5.2L 1SNA290027R2500 50 6.00
Green D2.5/5.2L 1SNA290028R0600 50 6.00
Red D2.5/5.2L 1SNA290024R2200 50 6.00
D2.5/5.2L Purple D2.5/5.2L 1SNA290465R0100 50 6.00
Brown D2.5/5.2L 1SNA290464R0000 50 6.00
White D2.5/5.2L 1SNA290025R2300 50 6.00
Black D2.5/5.2L 1SNA290026R2400 50 6.00
58 2.28" Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
45.5 1.79" 38 1.50" 1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
29 1.14" Gauge A2 Ø 3.5 mm
Ø 0.138 in
Rated current / Rated cross section 24 A / 2.5 mm² 15 A / 12 AWG 15 A / 12 AWG
5 mm 0.197 in spacing Rated short-time withstand current (1s) 300 A
Rated voltage 800 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.354 in
1 End stops 9 mm Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED5.2L 1SNA291061R2400 20 2.00
3 Jumper bars 2 poles 24 A Orange BJDL5-2 1SNA291102R2300 50 1.00
3 4 3 poles BJDL5-3 1SNA291103R2400 50 0.70
4 poles BJDL5-4 1SNA291104R2500 50 0.80
5 poles BJDL5-5 1SNA291105R2600 20 0.90
10 poles BJDL5-10 1SNA291110R2600 20 1.20
4 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in Orange BJDPL5.6-2 1SNA291150R0600 20 0.20
5 6 jumpers 5 mm 0.200 in - 8 mm 0.315 in BJDPL5.8-2 1SNA291160R0000 20 1.65
5 mm 0.200 in - 10 mm 0.400 in BJDPL5.10-2 1SNA291480R2200 20 0.50
5 Circuit separators 2.5 mm 0.098 in Orange SCD5.2L 1SNA291352R0400 20 2.20
6 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
7 8 7 Shield connectors CBD5.2L 1SNA291077R2400 50 2.00
8 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162001S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Screwless rail connection Green-yellow D2.5/5.P.2L 1SNA290029R0700 50 9.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 93
