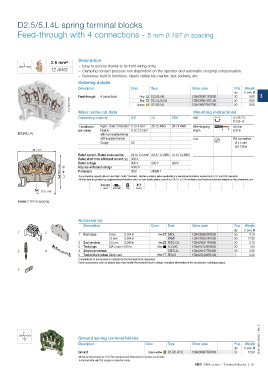

P. 99
D2.5/5.I.4L spring terminal blocks
Feed-through with 4 connections - 0.197 in spacing
5 mm
Description
2.5 mm²
– Easy to access thanks to its front wiring entry,
12 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: clearly visible top marker, test sockets, etc.
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
9.00 3
Feed-through
1SNA399071R0200
D2.5/5.I.4L
50
Grey
4 connections
1SNC162021F0014 Orange D2.5/5.I.N.4L 1SNA399070R1500 50 9.00
Blue
9.00
D2.5/5.I.4L
50
1SNA399270R2200
Main technical data
Connecting capacity IEC UL CSA Mounting instructions
TH 35-7.5,
Rail
TH 35-15
1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-14 AWG Wire stripping 9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
D2.5/5.I.4L with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
55 2.16"
Rated current / Rated cross section 24 A / 2.5 mm² 20 A / 12 AWG 15 A / 14 AWG
Rated short-time withstand current (1s) 300 A
Rated voltage 800 V 600 V 600 V
56.5 2.22" 49 1.92" Impulse withstand voltage 8000 V NEMA 1
IP20
Protection
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
27.5 1.08"
5 mm 0.197 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED5.I.3L 1SNA290311R0600 20 2.10
3 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
3 4 4 Shield connectors CBD5.2L 1SNA291077R2400 50 2.00
5 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5
1SNC162019S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Green-yellow D2.5/5.I.P.4L 1SNA399073R0400 50 12.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 97
