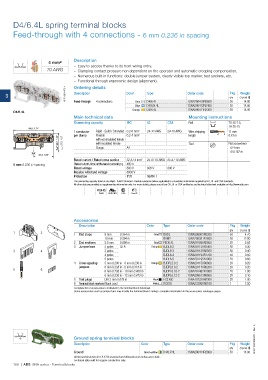

Page 102 - 1SNC160019C0203_SNA series - Terminal blocks
P. 102
D4/6.4L spring terminal blocks
Feed-through with 4 connections - 0.236 in spacing
6 mm
Description
4 mm²
– Easy to access thanks to its front wiring entry,
10 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
1SNC162014F0014 Ordering details Color Type Order code Pkg Weight
Description
3 qty (1 pce) g
4 connections
Feed-through
Grey
D4/6.N.4L
14.00
50
1SNA290412R2400
Blue D4/6.4L 1SNA290410R0600 50 14.00
Orange D4/6.4L 1SNA290411R2300 50 14.00
D4/6.4L
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
94.5 3.72"
1 conductor Rigid - Solid / Stranded 0.2-6 mm² 24-10 AWG 24-10 AWG Wire stripping 11 mm
per clamp Flexible 0.2-4 mm² length 0.43 in
38.7 1.52" 27.2 1.07" with non insulated ferrule Flat screwdriver
with insulated ferrule
Gauge A4 Tool Ø 4 mm
Ø 0.157 in
47.3 1.86"
Rated current / Rated cross section 32 A / 4 mm² 25 A / 10 AWG 25 A / 10 AWG
6 mm 0.236 in spacing Rated short-time withstand current (1s) 480 A
Rated voltage 800 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED6.4L 1SNA291696R2600 20 2.85
3 Jumper bars 2 poles 32 A Orange BJDL6-2 1SNA291128R2400 50 0.30
3 4 3 poles BJDL6-3 1SNA291129R2500 50 0.40
4 poles BJDL6-4 1SNA291194R1700 50 0.50
5 poles BJDL6-5 1SNA291195R1000 20 0.60
4 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in Orange BJDPL5.6-2 1SNA291150R0600 20 0.20
jumpers 6 mm 0.238 in - 8 mm 0.315 in BJDPL6.8-2 1SNA291170R0200 20 0.20
5 6 6 mm 0.236 in - 10 mm 0.400 in BJDPL6.10-2 1SNA291482R1000 20 1.00
6 mm 0.236 in - 12 mm 0.473 in BJDPL6.12-2 1SNA399613R0600 20 3.10
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162008S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Green-yellow D4/6.P.4L 1SNA290414R2600 50 14.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
100 | ABB SNA series - Terminal blocks
