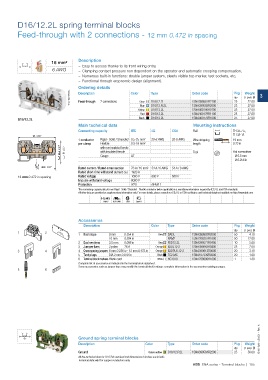

D16/12.2L spring terminal blocks
Feed-through with 2 connections - 0.472 in spacing
12 mm
Description
16 mm²
– Easy to access thanks to its front wiring entry,
6 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
Ordering details
1SNC162076F0014 Description Color Type Order code Pkg (1 pce) g 3
Weight
qty
Grey
2 connections
Feed-through
1SNA399582R2000
25
D16/12.N.2L
27.00
Blue D16/12.2L 1SNA399581R2700 25 27.00
Yellow D16/12.2L 1SNA400180R0700 25 27.00
Red D16/12.2L 1SNA400179R1100 25 27.00
D16/12.2L Black D16/12.2L 1SNA400178R1000 25 27.00
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
93 3.66" TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-25 mm² 20-6 AWG 20-6 AWG Wire stripping 19 mm
per clamp Flexible 0.5-16 mm² length 0.73 in
58.5 2.30" 51 2.01" with non insulated ferrule Tool Flat screwdriver
with insulated ferrule
Gauge A7 Ø 6.5 mm
Ø 0.256 in
46.5 1.83" Rated current / Rated cross section 76 A / 16 mm² 54 A / 6 AWG 54 A / 6 AWG
Rated short-time withstand current (1s) 1920 A
12 mm 0.472 in spacing Rated voltage 1000 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED12.2L 1SNA399571R0400 10 5.00
3 Jumper bars 2 poles 76 A Orange BJDL12-2 1SNA399563R0400 25 7.00
3 4 4 Cross spacing jumpers 6 mm 0.236 in - 12 mm 0.473 in Orange BJDPL6.12-2 1SNA399613R0600 20 3.10
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5 6
1SNC162014S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Green-yellow D16/12.P.2L 1SNA399584R2200 25 56.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 105
