P. 110

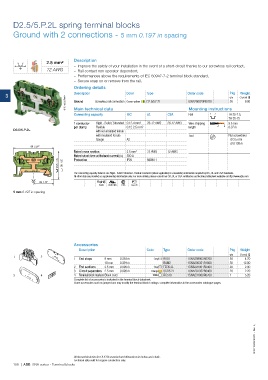

D2.5/5.P.2L spring terminal blocks
Ground with 2 connections - 5 mm 0.197 in spacing
Description
2.5 mm²
– Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact,
12 AWG – Rail contact non operator dependent,
– Performances above the requirements of IEC 60947-7-2 terminal block standard,
– Secure snap on or remove from the rail.
Ordering details
Description Color Type Order code Pkg Weight
3 qty (1 pce) g
1SNC162020F0014 Ground Screwless rail connection Green-yellow D2.5/5.P.2L 1SNA290029R0700 50 9.00
Main technical data
Rail
TH 35-7.5,
Connecting capacity IEC UL CSA Mounting instructions
TH 35-15
1 conductor Rigid - Solid / Stranded 0.12-4 mm² 26-12 AWG 26-12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.12-2.5 mm² length 0.37 in
D2.5/5.P.2L with non insulated ferrule
with insulated ferrule Tool Flat screwdriver
Gauge A2 Ø 3.5 mm
Ø 0.138 in
58 2.28"
Rated cross section 2.5 mm² 12 AWG 12 AWG
Rated short-time withstand current (1s) 300 A NEMA 1
45.5 1.79" 38 1.50" Protection IP20
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
29 1.14"
RoHS USR CNR CSA Gost R
5 mm 0.197 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.354 in
1 End stops 9 mm Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED5.2L 1SNA291061R2400 20 2.00
3 Circuit separators 2.5 mm 0.098 in Orange SCD5.2L 1SNA291352R0400 20 2.20
3 4 4 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC162057S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
108 | ABB SNA series - Terminal blocks
