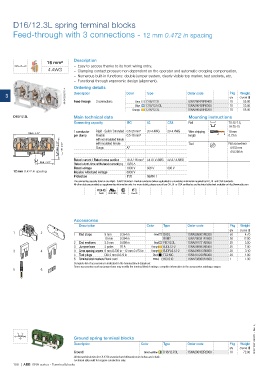

Page 108 - 1SNC160019C0203_SNA series - Terminal blocks
P. 108
D16/12.3L spring terminal blocks
Feed-through with 3 connections - 0.472 in spacing
12 mm
Description
16 mm²
– Easy to access thanks to its front wiring entry,
4 AWG – Clamping contact pressure non dependent on the operator and automatic creeping compensation,
– Numerous built-in functions: double jumper system, clearly visible top marker, test sockets, etc,
– Functional through ergonomic design (alignment).
Ordering details
1SNC162052F0014 Description Color Type Order code Pkg Weight
3 qty (1 pce) g
Grey
3 connections
Feed-through
55.00
D16/12.N.3L
10
1SNA290429R0500
Blue D16/12.3L 1SNA290428R0400 10 55.00
Orange D16/12.3L 1SNA290430R0200 10 55.00
D16/12.3L Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-25 mm² 20-4 AWG 20-4 AWG Wire stripping 19 mm
106.5 4.19"
per clamp Flexible 0.5-16 mm² length 0.73 in
with non insulated ferrule
58.5 2.30" 51 2.01" with insulated ferrule A7 Tool Flat screwdriver
Gauge
Ø 6.5 mm
Ø 0.256 in
Rated current / Rated cross section 76 A / 16 mm² 54 A / 4 AWG 54 A / 4 AWG
36.5 1.43"
Rated short-time withstand current (1s) 1920 A
Rated voltage 1000 V 600 V 600 V
12 mm 0.472 in spacing Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 9 mm 0.354 in Grey BADL 1SNA399903R0200 50 4.70
10 mm 0.394 in BAM2 1SNA206351R1600 50 12.00
2 End sections 2.5 mm 0.098 in Grey FED12.3L 1SNA291721R2600 20 5.50
3 Jumper bars 2 poles 76 A Orange BJDL12-2 1SNA399563R0400 25 7.00
3 4 4 Cross spacing jumpers 6 mm 0.236 in - 12 mm 0.473 in Orange BJDPL6.12-2 1SNA399613R0600 20 3.10
5 Test plugs DIA 2 mm 0.079 in Black FC2.MC 1SNA107239R0300 20 1.00
6 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5 6
1SNC162015S0201 - Rev. A
Ground spring terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Green-yellow D16/12.P.3L 1SNA290432R2000 10 72.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
