Page 93 - 1SNC160019C0203_SNA series - Terminal blocks
P. 93

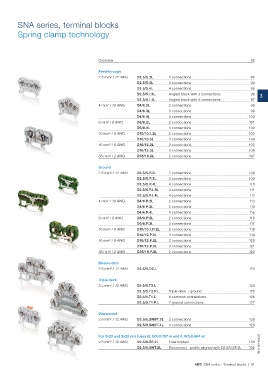

SNA series, terminal blocks
Spring clamp technology
Overview 92
Feed-through
2.5 mm² / 12 AWG D2.5/5.2L 2 connections 93
D2.5/5.3L 3 connections 94
D2.5/5.4L 4 connections 95
D2.5/5.I.3L Angled block with 3 connections 96 3
D2.5/5.I.4L Angled block with 4 connections 97
2
4 mm² / 10 AWG D4/6.2L connections 98
3
D4/6.3L connections 99
4
D4/6.4L connections 100
2
6 mm² / 8 AWG D6/8.2L connections 101
3
D6/8.3L connections 102
10 mm² / 6 AWG D10/10.1.2L 2 connections 103
D10/10.3L 3 connections 104
16 mm² / 6 AWG D16/12.2L 2 connections 105
D16/12.3L 3 connections 106
35 mm² / 2 AWG D35/16.2L 2 connections 107
Ground
2.5 mm² / 12 AWG D2.5/5.P.2L 2 connections 108
D2.5/5.P.3L 3 connections 109
D2.5/5.P.4L 4 connections 110
D2.5/5.P.I.3L 3 connections 111
D2.5/5.P.I.4L 4 connections 112
4 mm² / 10 AWG D4/6.P.2L 2 connections 113
D4/6.P.3L 3 connections 114
D4/6.P.4L 4 connections 115
6 mm² / 8 AWG D6/8.P.2L 2 connections 116
D6/8.P.3L 3 connections 117
10 mm² / 6 AWG D10/10.1.P.2L 2 connections 118
D10/10.P.3L 3 connections 119
16 mm² / 6 AWG D16/12.P.2L 2 connections 120
D16/12.P.3L 3 connections 121
35 mm² / 2 AWG D35/16.P.2L 2 connections 122
Double deck
2.5 mm² / 12 AWG D2.5/5.D2.L 123
Triple deck
2.5 mm² / 12 AWG D2.5/5.T3.L 124
D2.5/5.T3.P.L Triple deck + ground 125
D2.5/5.T1.L 6 common connections 126
D2.5/5.T1.P.L 7 ground connections 127
Disconnect
2.5 mm² / 12 AWG D2.5/5.SNBT.2L 2 connections 128
D2.5/5.SNBT.4L 4 connections 129
For 5x20 and 5x25 mm fuses (0.197x0.787 in and 0.197x0.984 in)
2.5 mm² / 12 AWG D2.5/8.SF.2L Fuse holders 130 1SNC162114S0201
D2.5/8.SNT.2L Disconnect - profile aligned with D2.5/8.SF.2L 132
ABB SNA series - Terminal blocks | 91
