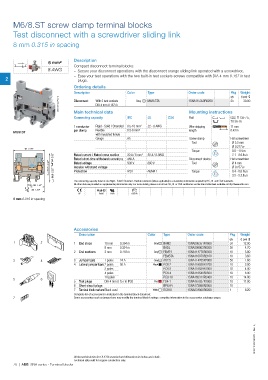

M6/8.ST screw clamp terminal blocks
Test disconnect with a screwdriver sliding link
8 mm 0.315 in spacing
Description
6 mm²
Compact disconnect terminal blocks:
8 AWG – Secure your disconnect operations with the disconnect orange sliding link operated with a screwdriver,
0.157 in test
– Ease your test operations with the two built-in test sockets screws compatible with DIA 4 mm
2 plugs.
Ordering details
Description Color Type Order code Pkg Weight
(1 pce) g
1SNC161221F0014 Disconnect With 2 test sockets Grey M6/8.STA 1SNA115359R0200 25 30.00
qty
DIA 4 mm 0.157 in
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 22 - 8 AWG Wire stripping 11 mm
per clamp Flexible 0.5-6 mm² length 0.43 in
M6/8.ST
with insulated ferrule
Gauge A5 Screw clamp Flat screwdriver
Tool Ø 5.5 mm
Ø 0.217 in
61 2.40"
Torque 0.8 - 1 N.m
64 2.52" Rated current / Rated cross section 30 A / 6 mm² 50 A / 8 AWG Disconnect device Flat screwdriver
7.1 - 8.9 lb.in
480 A
Rated short-time withstand current (1s)
61.5 2.42" Rated voltage 500 V 600 V Tool Ø 4 mm
Ø 0.157 in
Impulse withstand voltage
56.5 2.22" Protection IP20 NEMA 1 Torque 0.4 - 0.6 N.m
3.5 - 5.3 lb.in
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
28 1.10" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
33 1.30"
CE RoHS USR Gost R
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 3 mm 0.118 in Grey FEMT4 1SNA114778R0500 10 5.60
FEMSTA 1SNA116979R2100 10 3.60
3 4 3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
4 Lateral jumper bars2 poles 50 A Black PC8-2 1SNA116538R1700 10 3.00
3 poles PC8-3 1SNA116539R1000 10 4.00
4 poles PC8-4 1SNA116540R2500 10 6.00
10 poles PC8-10 1SNA163313R2400 10 14.00
5 6
5 Test plugs DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
6 Short circuit plugs BP8.A4 1SNA173888R2000 10
7 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
7 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161031S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
