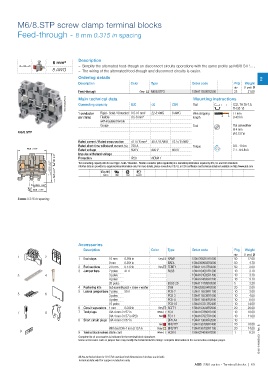

Page 71 - 1SNC160019C0203_SNA series - Terminal blocks
P. 71
M6/8.STP screw clamp terminal blocks
Feed-through - 8 mm 0.315 in spacing
Description
6 mm²
– Simplify the alternated feed-though an disconnect circuits operations with the same profile as M6/8 STP... ,
8 AWG – The wiring of the alternated feed-though and disconnect circuits is easier.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Grey M6/8.STP3 1SNA115500R2500 25 21.00
1SNC161284F0014 Main technical data IEC UL CSA Mounting instructions
Rail
G32, TH 35-7.5,
Connecting capacity
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 22-8 AWG 8 AWG Wire stripping 11 mm
per clamp Flexible 0.5-6 mm² length 0.433 in
with insulated ferrule
Gauge Tool Flat screwdriver
Ø 4 mm
M6/8.STP Ø 0.157 in
Rated current / Rated cross section 41 A / 6 mm² 40 A / 8 AWG 15 A / 8 AWG
Rated short-time withstand current (1s) 720 A Torque 0.8 - 1 N.m
55.5 2.19" 600 V 600 V 7.1 - 8.9 lb.in
Rated voltage 500 V
60 2.37" Impulse withstand voltage IP20 NEMA 1
Protection
57.5 2.27" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
52.5 2.07" RoHS USR CSA Gost R
25.5 1.00"
30.5 1.20"
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 2.8 mm 0.110 in Grey FEMT1 1SNA113137R0200 50 2.00
3 Jumper bars 2 poles 41 A BJS8 1SNA164581R1300 10 3.10
3 4 3 poles 1SNA164582R1400 10 3.10
4 poles 1SNA164583R1500 10 3.10
20 poles BJS8-20 1SNA174789R0500 5 3.20
4 Fastening kits Sub assembly post + screw + washer EV6I 1SNA206394R0200 20 2.00
5 Lateral jumper bars2 poles 50 A PC8-2 1SNA116538R1700 10 3.00
5 6
3 poles PC8-3 1SNA116539R1000 10 4.00
4 poles PC8-4 1SNA116540R2500 10 6.00
10 poles PC8-10 1SNA163313R2400 10 14.00
6 Circuit separators 1 mm 0.039 in Grey SCFT1 1SNA103588R2600 20 20.00
7 8 7 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
8 Short circuit plugs DIA 4 mm 0.157 in BP8.A4 1SNA173888R2000 10
Red BNSTP2 1SNA196789R2400 20 10.00
With test DIA 4 mm 0.157 in Beige BNSTP1 1SNA196792R1700 20 14.00
9 9 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet. 1SNC161068S0201 - Rev. B
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 69
