Page 66 - 1SNC160019C0203_SNA series - Terminal blocks
P. 66

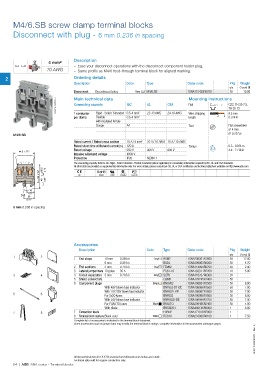

M4/6.SB screw clamp terminal blocks
Disconnect with plug - 6 mm 0.236 in spacing
Description
4 mm²
– Ease your disconnect operations with the disconnect component holder plug,
10 AWG – Same profile as M4/6 feed-through terminal block for aligned marking.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect By polarized plug Grey M4/6.SB 1SNA115435R0700 50 10.00
1SNC161187F0014 Main technical data IEC UL CSA Mounting instructions
Rail
Connecting capacity
G32, TH 35-7.5,
TH 35-15
1 conductor
0.374 in
0.5-4 mm²
per clamp Rigid - Solid / Stranded 0.5-4 mm² 22-10 AWG 24-10 AWG Wire stripping 9.5 mm
length
Flexible
with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
M4/6.SB
Rated current / Rated cross section 10 A / 4 mm² 10 A / 10 AWG 15 A / 10 AWG
Rated short-time withstand current (1s) 120 A Torque 0.5 - 0.8 N.m
Rated voltage 250 V 300 V 600 V 4.4 - 7.1 lb.in
44.5 1.75"
Impulse withstand voltage 4000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
55.5 2.18"
53 2.09" CE RoHS USR cCSAus Gost R
CUS
48 1.89"
18
0.71"
23
0.91"
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 3 mm 0.118 in Grey FEM62 1SNA114994R0700 20 2.40
3 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
3 4 4 Circuit separators 3 mm 0.118 in Grey SCF6 1SNA118707R0300 20
5 Shield connectors CBM5 1SNA178745R1400 50
6 Component plugs Beige BNSV62 1SNA196854R1500 50 6.00
With 48V blown fuse indicator BNF652-D1-BE 1SNA196966R1500 50 7.00
With 110-230V blown fuse indicator BNF652L-BE 1SNA196967R1600 50 7.00
5 6
For 5x20 fuses BNF652 1SNA196998R1600 50 6.00
With 24V blown fuse indicator BNF652D-BE 1SNA196999R1700 50 7.00
For FUAUTO fuses Black BFAUTO 1SNA299486R2400 50 1.00
With diode BNS6DG1 1SNA400146R0000 1 6.00
7 8 7 Extraction tools EXBN2 1SNA171018R2000 1
8 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
1SNC161060S0201 - Rev. A
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
64 | ABB SNA series - Terminal blocks
Disconnect with plug - 6 mm 0.236 in spacing
Description
4 mm²
– Ease your disconnect operations with the disconnect component holder plug,
10 AWG – Same profile as M4/6 feed-through terminal block for aligned marking.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect By polarized plug Grey M4/6.SB 1SNA115435R0700 50 10.00
1SNC161187F0014 Main technical data IEC UL CSA Mounting instructions
Rail
Connecting capacity
G32, TH 35-7.5,
TH 35-15
1 conductor
0.374 in
0.5-4 mm²
per clamp Rigid - Solid / Stranded 0.5-4 mm² 22-10 AWG 24-10 AWG Wire stripping 9.5 mm
length
Flexible
with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
M4/6.SB
Rated current / Rated cross section 10 A / 4 mm² 10 A / 10 AWG 15 A / 10 AWG
Rated short-time withstand current (1s) 120 A Torque 0.5 - 0.8 N.m
Rated voltage 250 V 300 V 600 V 4.4 - 7.1 lb.in
44.5 1.75"
Impulse withstand voltage 4000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
55.5 2.18"
53 2.09" CE RoHS USR cCSAus Gost R
CUS
48 1.89"
18
0.71"
23
0.91"
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 3 mm 0.118 in Grey FEM62 1SNA114994R0700 20 2.40
3 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
3 4 4 Circuit separators 3 mm 0.118 in Grey SCF6 1SNA118707R0300 20
5 Shield connectors CBM5 1SNA178745R1400 50
6 Component plugs Beige BNSV62 1SNA196854R1500 50 6.00
With 48V blown fuse indicator BNF652-D1-BE 1SNA196966R1500 50 7.00
With 110-230V blown fuse indicator BNF652L-BE 1SNA196967R1600 50 7.00
5 6
For 5x20 fuses BNF652 1SNA196998R1600 50 6.00
With 24V blown fuse indicator BNF652D-BE 1SNA196999R1700 50 7.00
For FUAUTO fuses Black BFAUTO 1SNA299486R2400 50 1.00
With diode BNS6DG1 1SNA400146R0000 1 6.00
7 8 7 Extraction tools EXBN2 1SNA171018R2000 1
8 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
1SNC161060S0201 - Rev. A
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
64 | ABB SNA series - Terminal blocks
