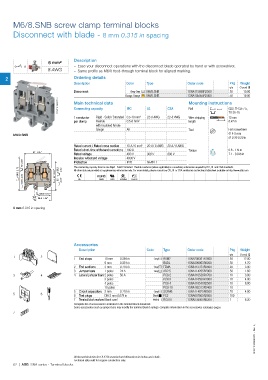

Page 64 - 1SNC160019C0203_SNA series - Terminal blocks
P. 64
M6/8.SNB screw clamp terminal blocks
Disconnect with blade - 8 mm 0.315 in spacing
Description
6 mm²
– Ease your disconnect operations with the disconnect blade operated by hand or with screwdriver,
8 AWG – Same profile as M6/8 feed-through terminal block for aligned marking.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect Grey, Grey M6/8.SNB 1SNA115688R2500 50 19.00
Orange, Orange M6/8.SNB 1SNA105055R2400 50 19.00
1SNC161084F0014 Main technical data IEC UL CSA Mounting instructions
Connecting capacity
G32, TH 35-7.5,
Rail
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 22-8 AWG 22-8 AWG Wire stripping TH 35-15
12 mm
per clamp Flexible 0.5-6 mm² length 0.47 in
with insulated ferrule
Gauge A5 Tool Flat screwdriver
M6/8.SNB Ø 4-5 mm
Ø 0.16-0.20 in
Rated current / Rated cross section 15 A / 6 mm² 20 A / 8 AWG 20 A / 8 AWG
Rated short-time withstand current (1s) 180 A Torque 0.8 - 1 N.m
47 1.85"
Rated voltage 400 V 300 V 600 V 7.1 - 8.9 lb.in
Impulse withstand voltage 4000 V
72 2.83" Protection IP20 NEMA 1
69.5 2.73" 57 2.24" 59.5 2.34" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
64.5 2.54" 52 2.05" CE RoHS USR cCSAus Gost R
CUS
20.5 0.81"
25.5 1.04"
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 3 mm 0.118 in Grey FEM8 1SNA113373R2600 20 3.00
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Lateral jumper bars2 poles 50 A PC8-2 1SNA116538R1700 10 3.00
3 poles PC8-3 1SNA116539R1000 10 4.00
4 poles PC8-4 1SNA116540R2500 10 6.00
10 poles PC8-10 1SNA163313R2400 10
5 Circuit separators 3 mm 0.118 in Grey SCFM6 1SNA114825R0500 20 4.00
5 6
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
7
1SNC161059S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
