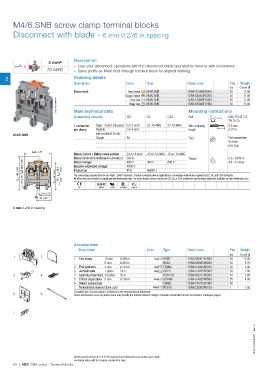

Page 62 - 1SNC160019C0203_SNA series - Terminal blocks
P. 62
M4/6.SNB screw clamp terminal blocks
Disconnect with blade - 6 mm 0.236 in spacing
Description
4 mm²
– Ease your disconnect operations with the disconnect blade operated by hand or with screwdriver,
10 AWG – Same profile as M4/6 feed-through terminal block for aligned marking.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect Grey, Orange M4/6.SNB 1SNA115986R0000 50 11.00
Orange, Orange M4/6.SNB 1SNA105053R2200 50 11.00
1SNC161078F0014 Beige, Grey M4/6.SNB 1SNA195686R1400 50 11.00
M4/6.SNB
50
11.00
1SNA115686R1300
Grey, Grey
Main technical data
Connecting capacity IEC UL CSA Mounting instructions
Rail
G32, TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-4 mm² 22-10 AWG 24-10 AWG Wire stripping 9.5 mm
per clamp Flexible 0.5-4 mm² length 0.37 in
M4/6.SNB with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
Ø 0.16 in
44.5 1.75"
Rated current / Rated cross section 20 A / 4 mm² 10 A / 10 AWG 15 A / 10 AWG
Rated short-time withstand current (1s) 300 A Torque 0.5 - 0.6 N.m
68.5 2.69" Rated voltage 400 V 300 V 600 V 4.4 - 5.3 lb.in
4000 V
Impulse withstand voltage
66 2.59" 57 2.24" 59.5 2.34" Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
61 2.40" 52 2.05" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CUS
CE RoHS USR cCSAus Gost R
18 0.71"
23 0.91"
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 3 mm 0.118 in Grey FEM62 1SNA114994R0700 20 2.40
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
5 Circuit separators 3 mm 0.118 in Grey SCFM6 1SNA114825R0500 20 4.00
6 Shield connectors CBM5 1SNA178745R1400 50
7 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
5 6 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
7
1SNC161057S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
60 | ABB SNA series - Terminal blocks
