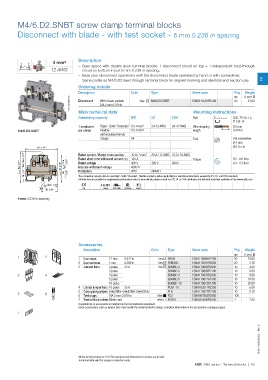

M4/6.D2.SNBT screw clamp terminal blocks
Disconnect with blade - with test socket - 0.236 in spacing
6 mm
Description
4 mm²
– Save space with double deck terminal blocks: 1 disconnect circuit on top + 1 independent feed-through
12 AWG circuit on bottom in just 6 mm 0.236 in spacing,
– Ease your disconnect operations with the disconnect blade operated by hand or with screwdriver,
– Same profile as M4/6.D2 feed-through terminal block for aligned marking and identical end section use. 2
Ordering details
Description Color Type Order code Pkg (1 pce) g
Weight
1SNC161089F0014 Disconnect With 4 tests sockets Grey M4/6.D2.SNBT 1SNA115561R1500 50 21.00
qty
DIA 2 mm 0.079 in
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-4 mm² 24-12 AWG 24-10 AWG Wire stripping 9.5 mm
M4/6.D2.SNBT per clamp Flexible 0.5-4 mm² length 0.374 in
with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
81 3.19"
85.5 3.37" Rated current / Rated cross section 10 A / 4 mm² 20 A / 12 AWG 15 A / 10 AWG Torque 0.5 - 0.6 N.m
120 A
Rated short-time withstand current (1s)
83 3.27" 70 2.76" 72.5 2.85" Rated voltage 400 V 300 V 600 V 4.4 - 5.3 lb.in
4000 V
Impulse withstand voltage
78 3.07" 65 2.56" Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. for more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
32.5 1.28" CUS
CE RoHS USR CNR cCSAus Gost R
38 1.50"
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 1 mm 0.039 in Grey FEMS6D 1SNA116591R0500 20 3.70
3 Jumper bars 2 poles 32 A Grey BJMI6D-2 1SNA179668R2000 10 4.00
3 poles BJMI6D-3 1SNA179669R2100 10 6.00
3 4 4 poles BJMI6D-4 1SNA179670R2600 10 8.00
5 poles BJMI6D-5 1SNA179671R1300 10 10.00
10 poles BJMI6D-10 1SNA179672R1400 10 20.00
4 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
5 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
5 6
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
7
1SNC161094S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
