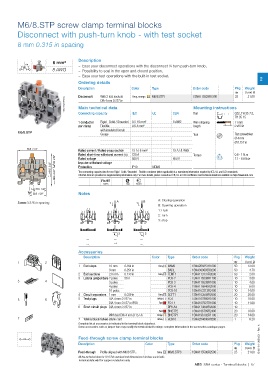

M6/8.STP screw clamp terminal blocks
Disconnect with push-turn knob - with test socket
8 mm 0.315 in spacing
Description
6 mm²
1/4 – Ease your disconnect operations with the disconnect ¼ turn push-turn knob,
8 AWG – Possibility to seal in the open and closed position,
– Ease your test operations with the built-in test socket.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect
Grey, orange
1SNA115529R1500
21.00
25
M6/8.STP1
With 2 test sockets
1SNC161217F0014 Main technical data Mounting instructions
DIA 4 mm 0.157 in
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 8 AWG Wire stripping 11 mm
per clamp Flexible 0.5-6 mm² length 0.433 in
with insulated ferrule
M6/8.STP
Gauge Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
55.5 2.19"
Rated current / Rated cross section 15 A / 6 mm² 15 A / 8 AWG
Rated short-time withstand current (1s) 720 A Torque 0.8 - 1 N.m
64 2.52" Rated voltage 500 V 600 V 7.1 - 8.9 lb.in
61.5 2.42" Impulse withstand voltage IP10 NEMA
Protection
56.5 2.22" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS CSA Gost R
25.5 1.00"
30.5 1.20" Notes
A: Closing operation
8 mm 0.315 in spacing 1 AB
B: Opening operation
1
1: Push
2: Turn
3: stop
2 2
3 3
Accessories
Description Color Type Order code Pkg Weight
1 2 qty (1 pce) g
1 End stops 10 mm 0.394 in Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 2.8 mm 0.110 in Grey FEMT1 1SNA113137R0200 50 2.00
3 Lateral jumper bars2 poles 50 A PC8-2 1SNA116538R1700 10 3.00
3 4 3 poles PC8-3 1SNA116539R1000 10 4.00
4 poles PC8-4 1SNA116540R2500 10 6.00
10 poles PC8-10 1SNA163313R2400 10 14.00
4 Circuit separators 1 mm 0.039 in Grey SCFT1 1SNA103588R2600 20 20.00
5 6 5 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
6 Short circuit plugs DIA 4 mm 0.157 in BP8.A4 1SNA173888R2000 10
Red BNSTP2 1SNA196789R2400 20 10.00
With test DIA 4 mm 0.157 in Beige BNSTP1 1SNA196792R1700 20 14.00
7 7 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Feed-through screw clamp terminal blocks 1SNC161108S0201 - Rev. A
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Profile aligned with M6/8 STP... Grey M6/8.STP3 1SNA115500R2500 25 21.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
