Page 74 - 1SNC160019C0203_SNA series - Terminal blocks

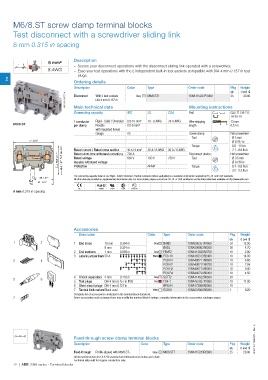

P. 74
M6/8.ST screw clamp terminal blocks
Test disconnect with a screwdriver sliding link
8 mm 0.315 in spacing
Description
6 mm²
– Secure your disconnect operations with the disconnect sliding link operated with a screwdriver,
8 AWG – Ease your test operations with the 2 independent built-in test sockets compatible with DIA 4 mm 0.157 in test
plugs.
2
Ordering details
Description Color Type Order code Pkg Weight
(1 pce) g
qty
1SNC161213F0014 Disconnect With 2 test sockets Grey M6/8.ST1 1SNA115237R1000 25 30.00
DIA 4 mm 0.157 in
Main technical data
Connecting capacity IEC UL CSA Mounting instructions
Rail
G32, TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 18 - 8 AWG 18-8 AWG Wire stripping 13 mm
M6/8.ST per clamp Flexible 0.5-6 mm² length 0.51 in
with insulated ferrule
Gauge A5 Screw clamp Flat screwdriver
Tool Ø 5 mm
77 3.03" Ø 0.197 in
56 2.21" Rated current / Rated cross section 40 A / 6 mm² 30 A / 8 AWG 30 A / 8 AWG Torque 0.8 - 1 N.m
7.1 - 8.9 lb.in
53.5 2.11" Rated short-time withstand current (1s) 720 A 150 V 150 V Disconnect device Flat screwdriver
Rated voltage
Ø 3.5 mm
630 V
Tool
Ø 0.138 in
48.5 1.91" Impulse withstand voltage NEMA Torque 0.4 - 0.6 N.m
Protection
3.5 - 5.3 lb.in
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
36 1.42"
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
41 1.61"
CE RoHS USR CSA Gost R
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 1 mm 0.039 in Grey FEMT2 1SNA113629R2700 10 2.00
3 Lateral jumper bars50 A Black PC8-10 1SNA163313R2400 10 14.00
3 4 PC8-R1 1SNA400711R0600 10 6.60
PC8-R2 1SNA400712R0700 10 7.84
PC8-R3 1SNA400713R0000 10 9.00
PC8-R4 1SNA400724R0300 10 4.50
4 Circuit separators 3 mm 0.118 in Grey SCFT2 1SNA114522R0500 20
5 6
5 Test plugs DIA 4 mm 0.157 in IP20 Red FC4-1 1SNA167927R1000 10 11.00
6 Short circuit plugs DIA 4 mm 0.157 in BP8.A4 1SNA173888R2000 10
7 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
7 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161109S0201 - Rev. A
Feed-through screw clamp terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Profile aligned with M6/8.ST... Grey M6/8.ST7 1SNA115243R2600 25 20.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
72 | ABB SNA series - Terminal blocks
