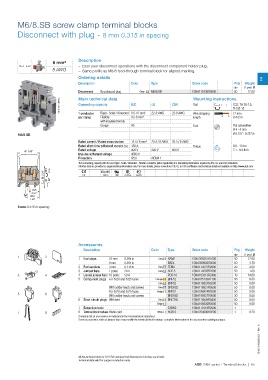

Page 67 - 1SNC160019C0203_SNA series - Terminal blocks
P. 67
M6/8.SB screw clamp terminal blocks
Disconnect with plug - 8 mm 0.315 in spacing
Description
6 mm²
– Ease your disconnect operations with the disconnect component holder plug,
8 AWG – Same profile as M6/8 feed-through terminal block for aligned marking.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect By polarized plug Grey M6/8.SB 1SNA115436R0000 50 17.00
1SNC161114F0014 Main technical data IEC UL CSA Mounting instructions
Connecting capacity
G32, TH 35-7.5,
Rail
TH 35-15
1 conductor
0.5-6 mm²
Flexible
per clamp Rigid - Solid / Stranded 0.5-10 mm² 22-8 AWG 22-8 AWG Wire stripping 12 mm
length
0.472 in
with insulated ferrule
Gauge A5 Tool Flat screwdriver
Ø 4 - 5 mm
Ø 0.157 - 0.197 in
M6/8.SB
Rated current / Rated cross section 15 A / 6 mm² 20 A / 8 AWG 20 A / 8 AWG
Rated short-time withstand current (1s) 180 A Torque 0.8 - 1 N.m
Rated voltage 400 V 300 V 600 V 7.1 - 8.9 lb.in
47 1.85"
Impulse withstand voltage 4000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
55.5 2.18"
53 2.09" CE RoHS USR cCSAus Gost R
CUS
48 1.89"
20.5
0.81"
25.5
1.00"
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 3 mm 0.118 in Grey FEM8 1SNA113373R2600 20 3.00
3 Jumper bars 1 poles 24 A Grey AD2.5 1SNA114205R2000 50 1.60
3 4 4 Lateral jumper bars 10 poles 50 A PC8-10 1SNA163313R2400 10 14.00
5 Component plugs For 5x20 and 5x25 fuses Orange BNF52 1SNA105133R1700 50 8.00
Grey BNF52 1SNA116924R0200 50 8.00
With solder leads and screws Grey BNSV82 1SNA116927R0500 50 8.00
For 5x20 and 5x25 fuses Beige BNF52 1SNA196924R0300 50 8.00
5 6
With solder leads and screws BNSV82 1SNA196927R0600 50 8.00
6 Short circuit plugs With test Grey BNCT82 1SNA116926R0400 50 9.00
Beige 1SNA196926R0500 50 9.00
7 Extraction tools EXBN2 1SNA171018R2000 1
7 8 8 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161062S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 65
