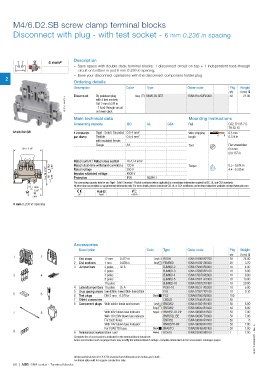

M4/6.D2.SB screw clamp terminal blocks
Disconnect with plug - with test socket - 0.236 in spacing
6 mm
Description
4 mm²
– Save space with double deck terminal blocks: 1 disconnect circuit on top + 1 independent feed-through
circuit on bottom in just 6 mm 0.236 in spacing,
– Ease your disconnect operations with the disconnect component holder plug.
2
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
M4/6.D2.SBT
Disconnect
1SNA115702R2300
By polarized plug
21.00
50
Grey
1SNC161164F0014 with 4 test sockets
DIA 2 mm 0.079 in
- 1 feed-through circuit
on lower deck
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32. TH 35-7.5.
TH 35-15
M4/6.D2.SB 1 conductor Rigid - Solid / Stranded 0.5-4 mm² Wire stripping 9.5 mm
per clamp Flexible 0.5-4 mm² length 0.374 in
with insulated ferrule
Gauge A4 Tool Flat screwdriver
81.1 3.19" Ø 4 mm
Ø 0.157 in
Rated current / Rated cross section 10 A / 4 mm²
72.2 2.85" Rated short-time withstand current (1s) 120 A Torque 0.5 - 0.6 N.m
70 2.76" Rated voltage 250 V 4.4 - 5.3 lb.in
4000 V
Impulse withstand voltage
65 2.56" Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
32.5
1.28"
38 CE RoHS Gost R
1.49"
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 1 mm 0.039 in Grey FEMS6D 1SNA116591R0500 20 3.70
3 Jumper bars 2 poles 32 A BJMI6D-2 1SNA179668R2000 10 4.00
3 poles BJMI6D-3 1SNA179669R2100 10 6.00
3 4 4 poles BJMI6D-4 1SNA179670R2600 10 8.00
5 poles BJMI6D-5 1SNA179671R1300 10 10.00
10 poles BJMI6D-10 1SNA179672R1400 10 20.00
4 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
5 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
5 6
6 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
7 Shield connectors CBD2S 1SNA178408R1400 50
8 Component plugs With solder leads and screws Grey BNSV62 1SNA116854R1400 50 6.00
Beige BNSV62 1SNA196854R1500 50 6.00
7 8 With 48V blown fuse indicator Beige BNF652-D1-BE 1SNA196966R1500 50 7.00
With 110-230V blown fuse indicator BNF652L-BE 1SNA196967R1600 50 7.00
For 5x20 fuses BNF652 1SNA196998R1600 50 6
With 24V blown fuse indicator BNF652D-BE 1SNA196999R1700 50 7.00
For FUAUTO fuses Black BFAUTO 1SNA299486R2400 50 1.00
9 9 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet. 1SNC161065S0201 - Rev. A
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
