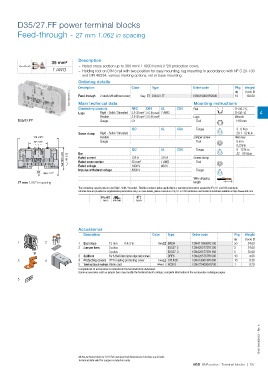

Page 139 - 1SNC160019C0203_SNA series - Terminal blocks
P. 139
D35/27.FF power terminal blocks
Feed-through - 27 mm 1.062 in spacing
Description
35 mm²
– Rated cross section up to 300 mm² / 1000 Kcmil, IP20 protection cover,
1 AWG – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130
and DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Order code Pkg Weight
1SNC165010F0014 Feed-through 2 studs M6 without cover Grey D35/27.FF 1SNA190001R2000 10 130.00
(1 pce) g
qty
Main technical data
Connecting capacity NFC DIN UL CSA Mounting instructions
TH 35-7.5,
Rail
Lugs Rigid - Solid / Stranded 2.5-35 mm² 2.5-50 mm² 1 AWG TH 35-15 4
Flexible 2.5-35 mm² 2.5-35 mm² Lugs Wrench
D35/27.FF Gauge C4 Tool H10 mm
IEC UL CSA Torque 3 - 6 N.m
Screw clamp Rigid - Solid / Stranded 26.1 - 52 lb.in
113 4.45" Flexible Jumper screw Allen key
52 2.05" Gauge Tool 6 mm
= = 0.236 in
IEC UL CSA Torque 6 - 12 N.m
66.5 2.62" 59 2.32" Bar 125 A 125 A Screw clamp 52 - 10 4 lb.in
Rated current
Rated cross section 35 mm² 1 AWG Tool
Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V Torque
56.5 2.22"
Wire stripping
27 mm 1.062 in spacing length
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 24.00
2 Jumper bars 2 poles BJS27-2 1SNA205772R1300 5 34.00
3 poles BJS27-3 1SNA205773R1400 5 52.00
3 Splitters For 6.35x0.8mm faston clips and screws DRF6 1SNA205767R1600 10 4.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF35 1SNA190016R1600 10 8.30
5 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5
1SNC165006S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 137
