P. 143

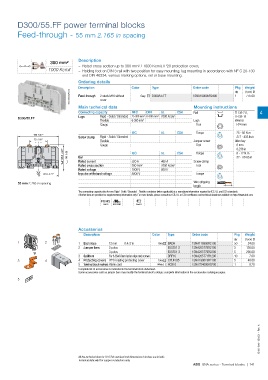

D300/55.FF power terminal blocks
Feed-through - 55 mm 2.165 in spacing
Description
300 mm²
– Rated cross section up to 300 mm² / 1000 Kcmil, IP20 protection cover,
1000 Kcmil – Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130
and DIN 46234, various marking options, rail or base mounting.
Ordering details
Description Color Type Order code Pkg Weight
1SNC165009F0014 Feed-through 2 studs M16 without Grey D300/55.FF 1SNA190005R2400 1 775.00
(1 pce) g
qty
cover
Main technical data Mounting instructions
Connecting capacity NFC DIN UL CSA Rail TH 35-7.5, 4
D300/55.FF Lugs Rigid - Solid / Stranded 25-300 mm² 6-300 mm² 1000 Kcmil TH 35-15
Flexible 6-300 mm² Lugs Wrench
Gauge Tool H24 mm
IEC UL CSA Torque 25 - 50 N.m
163 6.42" 217 - 435 lb.in
Screw clamp Rigid - Solid / Stranded
72 2.83" Flexible Jumper screw Allen key
= =
Gauge Tool 6 mm
0.236 in
106.5 4.20" 99 3.89" Bar IEC UL CSA Torque 6 - 12 N.m
52 - 10 4 lb.in
Rated current 520 A 460 A Screw clamp
Rated cross section 300 mm² 1000 Kcmil Tool
Rated voltage 1000 V 600 V
81.5 3.21" Impulse withstand voltage 8000 V Torque
55 mm 2.165 in spacing Wire stripping
length
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
RoHS USR CNR Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 24.00
2 Jumper bars 2 poles BJS551-2 1SNA205778R2100 5 158.00
3 poles BJS551-3 1SNA205779R2200 5 266.00
3 Splitters For 6.35x0.8mm faston clips and screws DRF16 1SNA205771R1200 10 7.00
3 4 4 Protecting covers IP20 rotating protecting cover Grey CPUF185 1SNA190019R2100 5 40.00
5 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
5
1SNC165011S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 141
