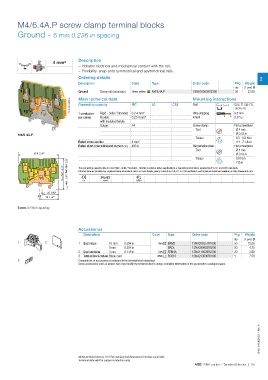

Page 37 - 1SNC160019C0203_SNA series - Terminal blocks
P. 37
M4/6.4A.P screw clamp terminal blocks
Ground - 6 mm 0.236 in spacing
Description
4 mm²
– Reliable electrical and mechanical contact with the rail,
– Flexibility: snap onto symmetrical and asymmetrical rails.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Screw rail connection Green-yellow M4/6.4A.P 1SNA195638R2300 50 22.00
1SNC161134F0014 Main technical data IEC UL CSA Mounting instructions
Rail
Connecting capacity
G32, TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-4 mm² Wire stripping 9.5 mm
per clamp Flexible 0.22-4 mm² length 0.37 in
with insulated ferrule
Gauge A4 Screw clamp Flat screwdriver
Tool Ø 4 mm
Ø 0.16 in
M4/6.4A.P
Torque 0.5 - 0.8 N.m
Rated cross section 4 mm² 4.4 - 7.1 lb.in
Rated short-time withstand current (1s) 480 A Rail connection screw Flat screwdriver
Tool Ø 4 mm
63.5 2.50" Ø 0.16 in
56.6 2.23" Torque 0.8 N.m
7 lb.in
54.1 2.13" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
49.1 1.93" CE RoHS Gost R
25 0.98"
30 1.18"
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 3 mm 0.118 in Grey FEM4A 1SNA116629R2200 20 3.80
3 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
3 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161006S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 35
