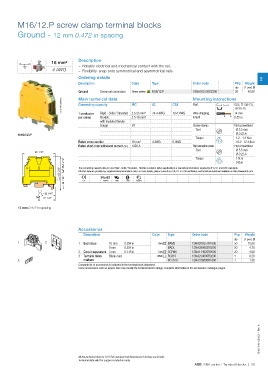

Page 41 - 1SNC160019C0203_SNA series - Terminal blocks
P. 41
M16/12.P screw clamp terminal blocks
Ground - 12 mm 0.472 in spacing
Description
16 mm²
– Reliable electrical and mechanical contact with the rail,
4 AWG – Flexibility: snap onto symmetrical and asymmetrical rails.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Screw rail connection Green-yellow M16/12.P 1SNA165130R2300 20 40.00
1SNC161132F0014 Main technical data IEC UL CSA Mounting instructions
Connecting capacity
G32, TH 35-7.5,
Rail
TH 35-15
1 conductor Rigid - Solid / Stranded 2.5-25 mm² 14-4 AWG 10-6 AWG Wire stripping 14 mm
per clamp Flexible 2.5-16 mm² length 0.55 in
with insulated ferrule
Gauge B7 Screw clamp Flat screwdriver
Tool Ø 5.5 mm
Ø 0.22 in
M16/12.P
Torque 1.2 - 1.4 N.m
Rated cross section 16 mm² 4 AWG 6 AWG 10.6 - 12 .4 lb.in
Rated short-time withstand current (1s) 1920 A Rail connection screw Flat screwdriver
Tool Ø 5.5 mm
49 1.93"
Ø 0.22 in
55.5 2.18" Torque 1 N.m
9 lb.in
53 2.09" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
48 1.89" CE RoHS USR CSA Gost R
22 0.87"
27 1.07"
12 mm 0.472 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 Circuit separators 3 mm 0.118 in Grey SCFM6 1SNA114825R0500 20 4.00
3 Terminal block Blank card White RC810 1SNA234000R0200 1 8.20
3 markers RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161010S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 39
