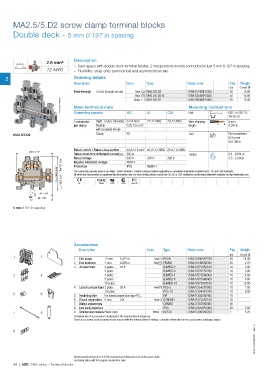

Page 46 - 1SNC160019C0203_SNA series - Terminal blocks
P. 46
MA2.5/5.D2 screw clamp terminal blocks
Double deck - 5 mm 0.197 in spacing
Description
2.5 mm²
– Save space with double deck terminal blocks: 2 independent circuits connected in just 5 mm 0.197 in spacing,
12 AWG – Flexibility: snap onto symmetrical and asymmetrical rails.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through 2 feed-through circuits Grey MA2.5/5.D2 1SNA115490R1300 50 15.00
Blue MA2.5/5.D2.N 1SNA125490R1500 50 15.00
1SNC161117F0014 Main technical data Mounting instructions
1SNA195490R1400
15.00
50
MA2.5/5.D2
Beige
Connecting capacity
G32, TH 35-7.5,
UL
IEC
CSA
Rail
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-4 mm² 22-12 AWG 20-12 AWG Wire stripping 9 mm
per clamp Flexible 0.22-2.5 mm² length 0.354 in
with insulated ferrule
MA2.5/5.D2 Gauge A3 Tool Flat screwdriver
Ø 3.5 mm
Ø 0.138 in
Rated current / Rated cross section 24 A / 2.5 mm² 20 A / 12 AWG 25 A / 12 AWG
65.5 2.57"
Rated short-time withstand current (1s) 300 A Torque 0.4 - 0.6 N.m
Rated voltage 630 V 300 V 300 V 3.5 - 5.3 lb.in
67 2.64" Impulse withstand voltage 8000 V NEMA 1
Protection
IP20
64.5 2.54" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
59.5 2.34" CE RoHS USR CSA Gost R
33 1.30"
38 1.50"
5 mm 0.197 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 1 mm 0.039 in Grey FEM6D 1SNA118499R2300 20 2.70
3 Jumper bars 2 poles 24 A BJMI5D-2 1SNA176736R2100 10 2.00
3 poles BJMI5D-3 1SNA176737R2200 10 3.00
3 4 4 poles BJMI5D-4 1SNA176738R0300 10 4.00
5 poles BJMI5D-5 1SNA176739R0400 10 6.00
10 poles BJMI5D-10 1SNA176740R1100 10 12.00
4 Lateral jumper bars2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
10 poles PC5-10 1SNA113544R1200 10 6.00
5 6
5 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
6 Circuit separators 0 mm 0 in Grey SCMA5D 1SNA116720R2100 10
7 Shield connectors CBM5D 1SNA173530R2400 50
8 Inner deck jumper bars ITV5 1SNA176259R1300 20 2.00
7 8 9 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161033S0201 - Rev. A
9
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
