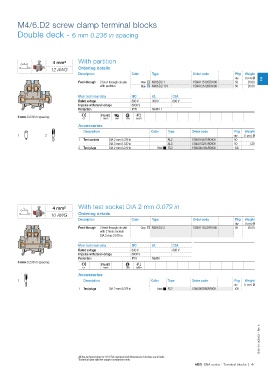

Page 49 - 1SNC160019C0203_SNA series - Terminal blocks

M4/6.D2 screw clamp terminal blocks

Double deck - 6 mm 0.236 in spacing

4 mm² With partition
12 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g 2
Feed-through 2 feed-through circuits Grey M4/6.D2.1 1SNA115126R0100 50 20.00
with partition Blue M4/6.D2.1.N 1SNA125126R0300 50 20.00

Main technical data IEC UL CSA
Rated voltage 800 V 300 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
6 mm 0.236 in spacing CE RoHS USR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
1 2 qty (1 pce) g
1 Test sockets DIA 2 mm 0.079 in AL2 1SNA163070R0000 50
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
2 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100

4 mm² With test socket DIA 2 mm 0.079 in
10 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through 2 feed-through circuits Grey M4/6.D2.2 1SNA115322R1500 50 20.00
with 2 tests sockets
DIA 2 mm 0.079 in

Main technical data IEC UL CSA
Rated voltage 630 V 600 V
Impulse withstand voltage 8000 V
Protection IP10 NEMA
6 mm 0.236 in spacing
CE RoHS CSA Gost R
Accessories
1 Description Color Type Order code Pkg Weight
qty (1 pce) g
1 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100

1SNC161100S0201 - Rev. A

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 47
