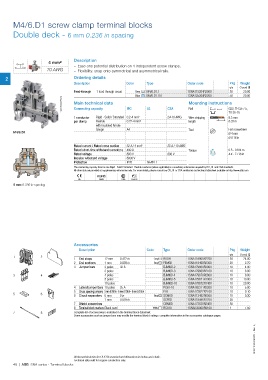

P. 50
M4/6.D1 screw clamp terminal blocks
Double deck - 6 mm 0.236 in spacing
Description
4 mm²
– Ease one potential distribution on 4 independent screw clamps,
10 AWG – Flexibility: snap onto symmetrical and asymmetrical rails.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through 1 feed-through circuit Grey M4/6.D1.1 1SNA115204R2000 50 20.00
20.00
M4/6.D1.1N
1SNA125204R2200
Blue
50
1SNC161206F0014 Main technical data UL CSA Mounting instructions
IEC
Rail
G32, TH 35-7.5,
Connecting capacity
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-4 mm² 24-10 AWG Wire stripping 8.5 mm
per clamp Flexible 0.22-4 mm² length 0.33 in
with insulated ferrule
Gauge A4 Tool Flat screwdriver
M4/6.D1 Ø 4 mm
Ø 0.16 in
Rated current / Rated cross section 32 A / 4 mm² 25 A / 10 AWG
Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.8 N.m
Rated voltage 800 V 600 V 4.4 - 7.1 lb.in
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS CSA Gost R
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 1 mm 0.039 in Grey FEM6D 1SNA118499R2300 20 2.70
3 Jumper bars 2 poles 32 A BJMI6D-2 1SNA179668R2000 10 4.00
3 poles BJMI6D-3 1SNA179669R2100 10 6.00
3 4 4 poles BJMI6D-4 1SNA179670R2600 10 8.00
5 poles BJMI6D-5 1SNA179671R1300 10 10.00
10 poles BJMI6D-10 1SNA179672R1400 10 20.00
4 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
5 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
5 6 0 in
6 Circuit separators 0 mm Grey SCM6D 1SNA113482R0500 10 0.30
1 mm 0.039 in SCF6D 1SNA118495R1700 20
7 Shield connectors CBM5D 1SNA173530R2400 50
8 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
7 8 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161040S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
48 | ABB SNA series - Terminal blocks
