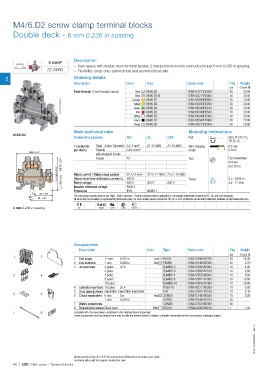

Page 48 - 1SNC160019C0203_SNA series - Terminal blocks
P. 48
M4/6.D2 screw clamp terminal blocks
Double deck - 6 mm 0.236 in spacing
Description
4 mm²
– Save space with double deck terminal blocks: 2 independent circuits connected in just 6 mm 0.236 in spacing,
12 AWG – Flexibility: snap onto symmetrical and asymmetrical rails.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through 2 feed-through circuits Grey M4/6.D2 1SNA115271R2200 50 20.00
Blue M4/6.D2.N 1SNA125271R2400 50 20.00
1SNC161112F0014 Yellow M4/6.D2 1SNA105045R2200 50 20.00
50
M4/6.D2
20.00
1SNA105049R0600
Orange
M4/6.D2
1SNA105044R2100
20.00
50
Green
Red
1SNA105046R2300
M4/6.D2
20.00
50
White M4/6.D2 1SNA105048R0500 50 20.00
Black M4/6.D2 1SNA105047R2400 50 20.00
Beige M4/6.D2 1SNA195271R2300 50 20.00
Main technical data Mounting instructions
M4/6.D2
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-4 mm² 22-12 AWG 24-10 AWG Wire stripping 8.5 mm
per clamp Flexible 0.22-4 mm² length 0.33 in
65.5 2.57"
with insulated ferrule
Gauge A4 Tool Flat screwdriver
67 2.64" Ø 4 mm
Ø 0.157 in
64.5 2.54" Rated current / Rated cross section 32 A / 4 mm² 20 A / 12 AWG 25 A / 10 AWG
59.5 2.34" Rated short-time withstand current (1s) 480 A 300 V 600 V Torque 0.5 - 0.8 N.m
4.4 - 7.1 lb.in
Rated voltage
800 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
33 1.30"
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
38 1.50" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
6 mm 0.236 in spacing CE RoHS USR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 1 mm 0.039 in Grey FEM6D 1SNA118499R2300 20 2.70
3 Jumper bars 2 poles 32 A BJMI6D-2 1SNA179668R2000 10 4.00
3 poles BJMI6D-3 1SNA179669R2100 10 6.00
3 4 4 poles BJMI6D-4 1SNA179670R2600 10 8.00
5 poles BJMI6D-5 1SNA179671R1300 10 10.00
10 poles BJMI6D-10 1SNA179672R1400 10 20.00
4 Lateral jumper bars 10 poles 35 A PC61-10 1SNA163311R2200 10 5.00
5 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
5 6 0 in
6 Circuit separators 0 mm Grey SCM6D 1SNA113482R0500 10 0.30
1 mm 0.039 in SCF6D 1SNA118495R1700 20
7 Shield connectors CBM5D 1SNA173530R2400 50
8 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
7 8 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161028S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
46 | ABB SNA series - Terminal blocks
