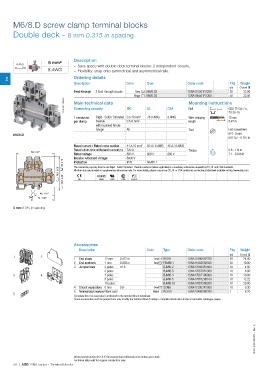

Page 52 - 1SNC160019C0203_SNA series - Terminal blocks
P. 52
M6/8.D screw clamp terminal blocks
Double deck - 8 mm 0.315 in spacing
Description
6 mm²
– Save space with double deck terminal blocks: 2 independent circuits,
8 AWG – Flexibility: snap onto symmetrical and asymmetrical rails.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through 2 feed-through circuits Grey M6/8.D2 1SNA115501R1200 50 33.00
Beige M6/8.D2 1SNA195501R1300 50 33.00
1SNC161119F0014 Main technical data IEC UL CSA Mounting instructions
G32, TH 35-7.5,
Rail
Connecting capacity
12 mm
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 18-8 AWG 8 AWG Wire stripping TH 35-15
per clamp Flexible 0.5-6 mm² length 0.47 in
with insulated ferrule
Gauge A5 Tool Flat screwdriver
M6/8.D Ø 4 - 5 mm
Ø 0.157 - 0.197 in
Rated current / Rated cross section 41 A / 6 mm² 50 A / 8 AWG 45 A / 8 AWG
Rated short-time withstand current (1s) 720 A Torque 0.8 - 1 N.m
88 3.38"
Rated voltage 800 V 600 V 600 V 7.1 - 8.9 lb.in
Impulse withstand voltage 8000 V
81 3.19" Protection IP20 NEMA 1
78.5 3.09" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
73.5 2.89" CE RoHS USR CSA Gost R
46 1.81"
51 2.00"
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 1 mm 0.039 in Grey FEM8D1 1SNA116656R2500 20 10.00
3 Jumper bars 2 poles 41 A BJMI8-2 1SNA176669R1600 10 4.50
3 poles BJMI8-3 1SNA176670R1300 10 6.00
3 4 4 poles BJMI8-4 1SNA176671R0000 10 10.00
5 poles BJMI8-5 1SNA176672R0100 10 12.22
10 poles BJMI8-10 1SNA176673R0200 10 20.00
4 Circuit separators 0 mm 0 in Grey SCM6 1SNA113003R1000 10 0.30
5 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
5
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161043S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
50 | ABB SNA series - Terminal blocks
