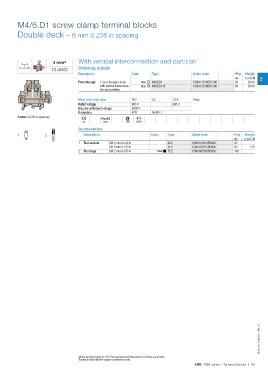

M4/6.D1 screw clamp terminal blocks

Double deck - 6 mm 0.236 in spacing

4 mm² With vertical interconnection and partition
10 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g 2
Feed-through 1 feed-through circuit Grey M4/6.D1 1SNA115166R1100 50 20.00
with vertical interconnec- Blue M4/6.D1.N 1SNA125166R1300 50 20.00
tion and partition

Main technical data IEC UL CSA Nota
Rated voltage 800 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
6 mm 0.236 in spacing
CE RoHS CSA Gost R
Accessories
1 2 Description Color Type Order code Pkg Weight
qty (1 pce) g
1 Test sockets DIA 2 mm 0.079 in AL2 1SNA163070R0000 50
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
2 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100

1SNC161101S0201 - Rev. A

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
