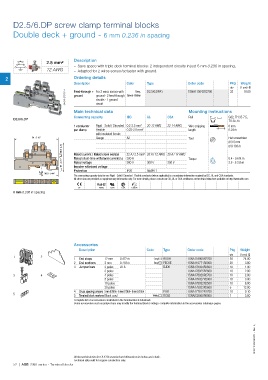

Page 54 - 1SNC160019C0203_SNA series - Terminal blocks
P. 54
D2.5/6.DP screw clamp terminal blocks
Double deck + ground - 6 mm 0.236 in spacing
Description
2.5 mm²
– Save space with triple deck terminal blocks: 2 independent circuits in just 6 mm 0.236 in spacing,
12 AWG – Adapted for 2 wires sensor/actuator with ground.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
1SNC161278F0014 ground ground - 2 feed-through Green-Yellow
Feed-through + For 2 wires sensor with
1SNA115643R2700
D2.5/6.DPA1
16.00
25
Grey,
circuits - 1 ground
circuit
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
D2.5/6.DP
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-2.5 mm² 20-12 AWG 22-14 AWG Wire stripping 6 mm
per clamp Flexible 0.22-2.5 mm² length 0.24 in
with insulated ferrule
81 3.19" Gauge A2 Tool Flat screwdriver
Ø 3.5 mm
58.5 2.30" Ø 0.138 in
Rated current / Rated cross section 22 A / 2.5 mm² 26 A / 12 AWG 20 A / 14 AWG
51 2.01" Rated short-time withstand current (1s) 300 A 300 V 300 V Torque 0.4 - 0.6 N.m
3.5 - 5.3 lb.in
Rated voltage
380 V
Impulse withstand voltage
Protection IP20 NEMA 1
36.5 1.44"
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CSA Gost R
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 3 mm 0.118 in Grey FED3E 1SNA116771R2000 20 3.80
3 Jumper bars 2 poles 22 A BJD6 1SNA178024R2500 10 1.00
3 poles 1SNA178025R2600 10 2.00
3 4 4 poles 1SNA178026R2700 10 2.00
5 poles 1SNA178027R2000 10 3.00
10 poles 1SNA178032R2500 10 6.00
20 poles 1SNA178033R2600 5 12.00
4 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL61 1SNA177812R1700 10 0.10
5
5 Terminal block markersBlank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161091S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
52 | ABB SNA series - Terminal blocks
Double deck + ground - 6 mm 0.236 in spacing
Description
2.5 mm²
– Save space with triple deck terminal blocks: 2 independent circuits in just 6 mm 0.236 in spacing,
12 AWG – Adapted for 2 wires sensor/actuator with ground.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
1SNC161278F0014 ground ground - 2 feed-through Green-Yellow
Feed-through + For 2 wires sensor with
1SNA115643R2700
D2.5/6.DPA1
16.00
25
Grey,
circuits - 1 ground
circuit
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
D2.5/6.DP
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-2.5 mm² 20-12 AWG 22-14 AWG Wire stripping 6 mm
per clamp Flexible 0.22-2.5 mm² length 0.24 in
with insulated ferrule
81 3.19" Gauge A2 Tool Flat screwdriver
Ø 3.5 mm
58.5 2.30" Ø 0.138 in
Rated current / Rated cross section 22 A / 2.5 mm² 26 A / 12 AWG 20 A / 14 AWG
51 2.01" Rated short-time withstand current (1s) 300 A 300 V 300 V Torque 0.4 - 0.6 N.m
3.5 - 5.3 lb.in
Rated voltage
380 V
Impulse withstand voltage
Protection IP20 NEMA 1
36.5 1.44"
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CSA Gost R
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 End sections 3 mm 0.118 in Grey FED3E 1SNA116771R2000 20 3.80
3 Jumper bars 2 poles 22 A BJD6 1SNA178024R2500 10 1.00
3 poles 1SNA178025R2600 10 2.00
3 4 4 poles 1SNA178026R2700 10 2.00
5 poles 1SNA178027R2000 10 3.00
10 poles 1SNA178032R2500 10 6.00
20 poles 1SNA178033R2600 5 12.00
4 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL61 1SNA177812R1700 10 0.10
5
5 Terminal block markersBlank card White RC65 1SNA232000R0000 1 3.60
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161091S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
52 | ABB SNA series - Terminal blocks
