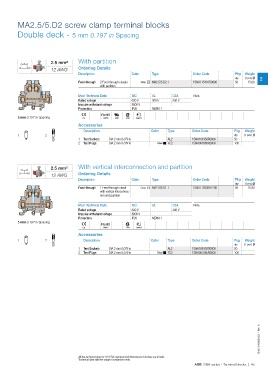

Page 47 - 1SNC160019C0203_SNA series - Terminal blocks

MA2.5/5.D2 screw clamp terminal blocks

Double deck - 5 mm 0.197 in Spacing

2.5 mm² With partition
12 AWG Ordering Details
Description Color Type Order Code Pkg Weight
qty (1 pce) g 2
Feed-through 2 Feed-through circuits Grey MA2.5/5.D2.1 1SNA115491R0000 50 15.00
with partition

Main Technical Data IEC UL CSA Nota
Rated voltage 630 V 300 V 300 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
5 mm 0.197 in Spacing CE RoHS USR CSA Gost R
Accessories
Description Color Type Order Code Pkg Weight
1 2 qty (1 pce) g
1 Test Sockets DIA 2 mm 0.079 in AL2 1SNA164950R0000 50
2 Test Plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100

2.5 mm² With vertical interconnection and partition
12 AWG Ordering Details
Description Color Type Order Code Pkg Weight
qty (1 pce) g
Feed-through 1 Feed-through circuit Grey MA2.5/5.D1.1 1SNA115530R1200 50 15.00
with vertical interconnec-
tion and partition
Main Technical Data IEC UL CSA Nota
Rated voltage 630 V 300 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
5 mm 0.197 in Spacing
CE RoHS CSA Gost R
Accessories
1 2 Description Color Type Order Code Pkg Weight
qty (1 pce) g
1 Test Sockets DIA 2 mm 0.079 in AL2 1SNA164950R0000 50
2 Test Plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100

1SNC161099S0201 - Rev. A

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 45
