Page 44 - 1SNC160019C0203_SNA series - Terminal blocks
P. 44

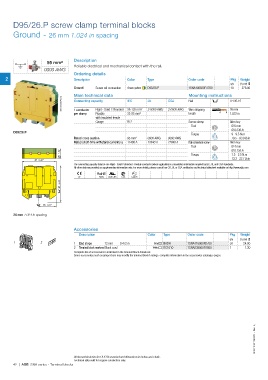

D95/26.P screw clamp terminal blocks
Ground - 26 mm 1.024 in spacing
Description
95 mm²
Reliable electrical and mechanical contact with the rail.
0000 AWG
Ordering details
2 Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Screw rail connection Green-yellow D95/26.P 1SNA400620R1700 10 278.00
Mounting instructions
Main technical data
1SNC161068F0014 Connecting capacity IEC UL CSA Rail TH 35-15
35-120 mm²
1 conductor
length
Flexible
per clamp Rigid - Solid / Stranded 35-95 mm² 2-0000 AWG 2-0000 AWG Wire stripping 26 mm
1.023 in
with insulated ferrule
Gauge B12 Screw clamp Allen key
Tool Ø 6 mm
Ø 0.236 in
D95/26.P
Torque 9 - 9.5 N.m
Rated cross section 95 mm² 0000 AWG 0000 AWG 79.5 - 83.9 lb.in
Rated short-time withstand current (1s) 11400 A 12840 A 12840 A Rail connection screw Allen key
Tool Ø 4 mm
Ø 0.158 in
26 1.02" Torque 1.5 - 2.5 N.m
87 3.43" 13.3 - 22.1 lb.in
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CNR CSA Gost R
87 3.43"
46 1.81"
26 mm 1.024 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 24.00
2 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161013S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
42 | ABB SNA series - Terminal blocks
Ground - 26 mm 1.024 in spacing
Description
95 mm²
Reliable electrical and mechanical contact with the rail.
0000 AWG
Ordering details
2 Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Screw rail connection Green-yellow D95/26.P 1SNA400620R1700 10 278.00
Mounting instructions
Main technical data
1SNC161068F0014 Connecting capacity IEC UL CSA Rail TH 35-15
35-120 mm²
1 conductor
length
Flexible
per clamp Rigid - Solid / Stranded 35-95 mm² 2-0000 AWG 2-0000 AWG Wire stripping 26 mm
1.023 in
with insulated ferrule
Gauge B12 Screw clamp Allen key
Tool Ø 6 mm
Ø 0.236 in
D95/26.P
Torque 9 - 9.5 N.m
Rated cross section 95 mm² 0000 AWG 0000 AWG 79.5 - 83.9 lb.in
Rated short-time withstand current (1s) 11400 A 12840 A 12840 A Rail connection screw Allen key
Tool Ø 4 mm
Ø 0.158 in
26 1.02" Torque 1.5 - 2.5 N.m
87 3.43" 13.3 - 22.1 lb.in
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CNR CSA Gost R
87 3.43"
46 1.81"
26 mm 1.024 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 24.00
2 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161013S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
42 | ABB SNA series - Terminal blocks
